Comparison of Intravenous Lipid Emulsion, Bicarbonate, and Glucagon Treatments in a Rabbit Model of Clomipramine Toxicity

1. Introduction

Tricyclic antidepressants (TCAs) were first approved by the Food and Drug Administration for antidepressant treatment in the 1950s. TCAs have been used extensively for the management of depression and other psychiatric disorders. Traditional TCAs include imipramine, desipramine, amitriptyline, nortriptyline, doxepin, trimipramine, protriptyline, and clomipramine [1]. Clomipramine is a frequently prescribed TCA because it is inexpensive. Clomipramine is metabolized by cytochrome P450 (CYP 450 2D6), in the liver, and is further metabolized into desmethyl clomipramine, a stable, active metabolite, by CYP 450 1A2. Although clomipramine affects serotonin uptake, the active metabolite affects norepinephrine uptake [2]. The half-life of clomipramine is 17–28 hours, and its cardiotoxic effects begin to emerge approximately 30 minutes after overdose intake, although its plasma peak time is 2–6 hours at therapeutic doses. The total therapeutic range of clomipramine is 230–450 ng/ml, and it becomes toxic at doses above 450 ng/ml. Although clomipramine binds to proteins at a rate of 97%–98%, its bioavailability is only 50%, with 60% being excreted in urine and 32% excreted in feces. Clomipramine has a large distribution volume because it is a lipophilic agent [3].

TCA intoxication has been associated with severe morbidity and mortality, rendering this issue highly important. TCAs block the alpha-adrenergic receptors and have anticholinergic effects. The blockade of fast sodium channels in myocardial cells can slow action potentials and provide a membrane-stabilizing effect, which can cause sinus tachycardia, cardiac conduction disorders, vasodilation, arrhythmias, hypotension, or asystole. The anticholinergic effects of TCAs include dry mouth, blurred vision, dilated pupils, hyperthermia, and delayed gastric emptying. Neurological symptoms associated with TCA use include numbness, coma, respiratory depression, seizures, and delirium [4, 5].

For the treatment of TCA overdose, favorable results have been reported among patients treated with gastrointestinal decontamination, activated charcoal administration, intravenous (IV) fluids, sodium bicarbonate (NaHCO${}_3$) infusion, magnesium sulfate, vasopressors, glucagon, and intralipid infusion [5]. In response to TCA intoxication, IV NaHCO${}_3$ is commonly used to prevent ventricular arrhythmias and hypotension, to correct metabolic acidosis, and to promote the binding of TCAs to proteins, reducing free drug quantities. Epinephrine, norepinephrine, and dopamine may be administered if hypotension cannot be treated, despite IV fluid replacement. Benzodiazepines may also be added to the treatment to prevent seizures [6, 7].

Intravenous lipid emulsions (ILEs) have been widely used during the resuscitation of lipophilic drug overdoses associated with neurological and cardiotoxic effects and are recommended as life-saving treatments in cases of severe hemodynamic instability [5].

Glucagon, which has been used to treat TCA intoxication (as well as beta-blocker and calcium channel blocker intoxication), has been reported to be effective for the treatment of refractory hypotension or arrhythmias, through the stimulation of adenyl cyclase, which has positive inotropic and chronotropic effects, independent of adrenergic receptor activity, increasing the intracellular calcium levels in the myocardium and stimulating endogenous epinephrine release from the adrenal medulla [8, 9].

The present study aimed to investigate whether ILE, NaHCO${}_3$, or glucagon could be used as antidotes to rescue the hemodynamic and cardiac parameters following experimentally induced clomipramine intoxication.

2. Materials and methods

3. Results

The results for four experimental groups, sham, ILE, glucagon, and NaHCO${}_3$ treatment groups, were evaluated. One rabbit in the glucagon group and one rabbit in the NaHCO${}_3$ group died before completing the study. The median (min-max) values for MAP, QRS, SO${}_2$, pH, pO${}_2$, pCO${}_2$, HCO${}_3$, and clomipramine variables are presented in Table 1. To facilitate visual comparison between groups at each time point and within subjects for the different time points of traits MAP, QRS, pH, and HCO${}_3$  are provided in the Fig. 1 and in Fig. 2  for  clomipramine, separately.

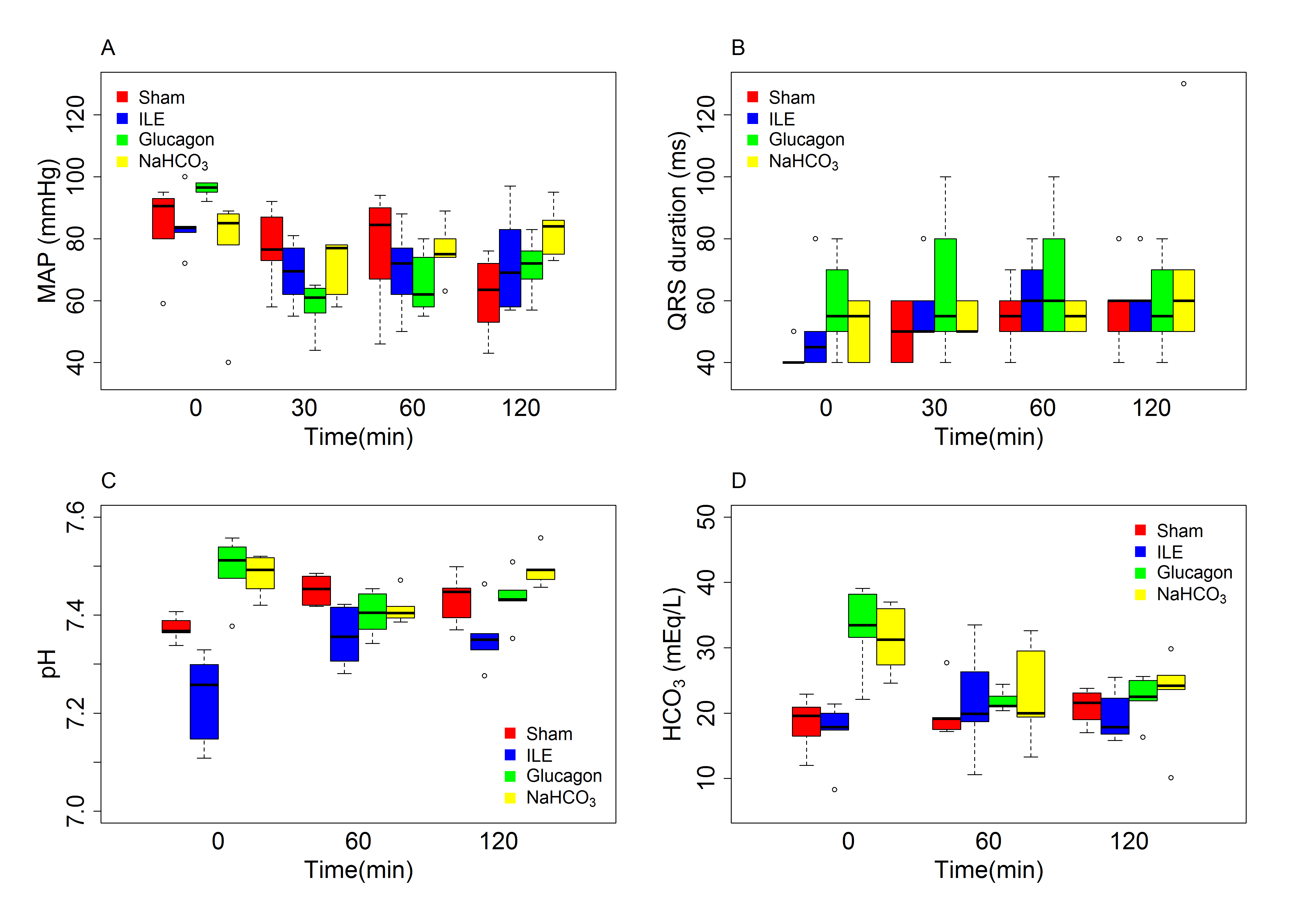

Fig. 1.Boxplot for the treatment groups at 0, 30, 60, and 120 minutes showing. A) mean arterial pressure (MAP) and B) QRS. Boxplots for the treatment groups at 0, 60, and 120 minutes for C) pH and D) HCO${}_3$.

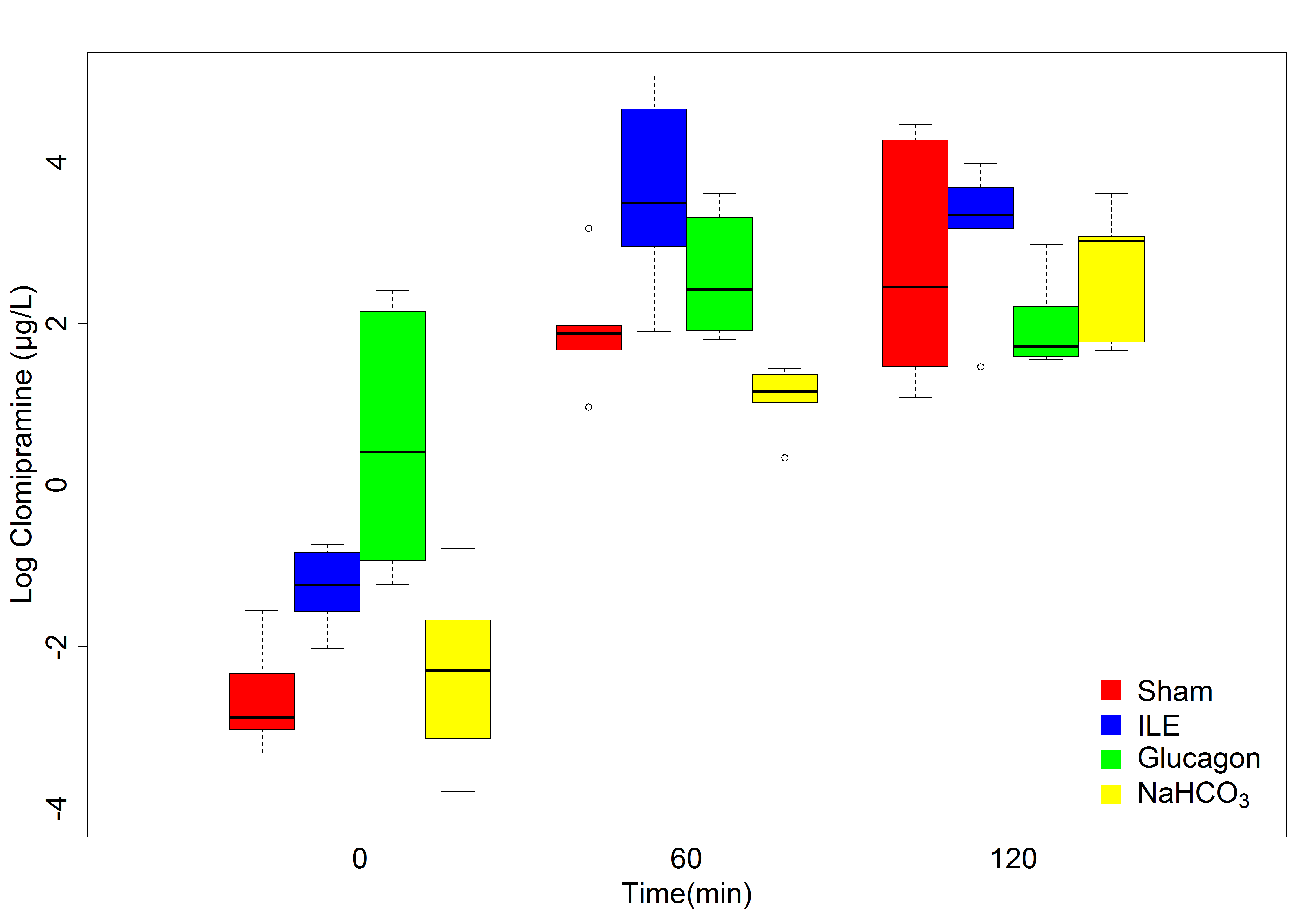

Fig. 2.Boxplots for the treatment groups at 0, 60, and 120 minutes for Log clomipramine.Note that Log is a monotonic function.

Although the MAP values changed significantly over time in the sham and glucagon treatment groups (p = 0.003 and p = 0.002, respectively), no significant changes were observed in the ILE and NaHCO${}_3$ treatment groups (Table 1). Significant differences were observed for the MAP values at 0 minutes compared with those at 30, 60, and 120 minutes in both the sham and glucagon treatment groups (Fig. 1). Although the MAP values decreased significantly after the 0-minute time point in both groups, the QRS increased significantly only in the sham group (Fig. 1). SO${}_2$ values also changed significantly, increasing with time in the glucagon treatment group (p = 0.003; Table 1). Whereas the pH values changed significantly in the sham and ILE treatment groups, no significant differences were observed over time in either the glucagon or NaHCO${}_3$ treatment groups (Table 1). Significant decreases in the pCO${}_2$ values over time were only detected in the NaHCO${}_3$ treatment group (p = 0.023). No significant changes were observed in any of the groups for pO${}_2$ and HCO${}_3$ values (Table 1). The clomipramine level changed significantly in all groups (p = 0.011, p = 0.009, p = 0.035, and p = 0.002 for the sham, ILE, glucagon, and NaHCO${}_3$ treatment groups, respectively). Although clomipramine levels increased across all time points in both the sham and NaHCO${}_3$ treatment groups, they began to decrease after 60 minutes in the ILE and glucagon treatment groups (Fig. 2).

Significant differences among groups were observed for MAP, pCO${}_2$, and HCO${}_3$ values at the 0-minute time point (p = 0.020, p = 0.033, and p $<$ 0.001, respectively). Significant differences among groups were also observed for pH values at 0, 60, and 120 minutes (p $<$ 0.001, p = 0.026, and p = 0.015, respectively). Significant differences among groups were observed for clomipramine levels at 0 and 60 minutes (p = 0.002 and p = 0.002, respectively; Table 1).

4. Discussion

Although the results of the present study suggest the potential that glucagon may be used as an antidote for clomipramine intoxication, better-designed and more comprehensive animal studies are required. The main limitations of the present study include difficulties in the management of orogastric clomipramine administration, caused by potential changes in gastric motility, technical restrictions for the monitoring and assessment of vital signs, and the insufficient assessment the acidosis influence on drug levels, due to the absence of a group in which glucagon treatment was applied together with NaHCO${}_3$ or ILE treatment. The lack of investigation on the effects of higher doses or repeated doses of the antidote treatment and the lack of measurement of drug concentrations at the tissue level, rather than at the serum level, which has not been correlated with the clinical signs of intoxication, are additional limitations of this study.

Cardiovascular toxicity classically manifests as ventricular dysrhythmias, hypotension, heart block, bradyarrhythmias, or asystole. Cardiotoxicity is the primary cause of death associated with TCA poisoning. Hypotension and cardiovascular collapse are primarily caused by ventricular arrhythmias and reduced myocardial contractility, secondary to sodium channel blockage. Sodium channel blockade prolongs the cardiac action potential and the refractory period, and delays atrioventricular node conduction, prolonging the QRS, QTc, and PR durations, respectively. Clinically, QRS prolongation on ECG may potentially be related to increased risks of cardiac arrhythmia and seizures [14].

Many treatment options have been explored to reverse these effects of TCA intoxication; some observational studies and case reports have indicated that only NaHCO${}_3$ administration, which maintains a pH value between 7.45 and 7.55, has been effective for the rapid correction of hypotension and cardiac arrhythmias, the termination of ventricular arrhythmias, and the reversal of QRS alterations; however, randomized, controlled studies have not been performed. These effects are thought to result from both sodium loading and the positive effects of alkalization [15, 16, 17]. However, the results of our study are not consistent with those of previous studies, as our study showed that NaHCO${}_3$ treatment did not shorten the QRS duration or result in significant MAP elevation.

In experimental TCA intoxication model studies, hypotension is the criterion used to indicate the establishment of intoxication in model subjects. Systolic blood pressure has been used to assess hypotension in some studies, whereas MAP was used in others. A reduction of 50%, relative to baseline values, within 30 min following clomipramine administration via the oral or IV routes has been accepted as a positive indicator of intoxication in some studies [7, 18, 19].

ECG changes, such as QRS prolongation, enlargement of the PR and QT intervals, and arrhythmias, are important for the diagnosis and follow-up of TCA intoxication. The likelihood that complications will develop is high in the presence of prolonged QRS ($>$ 100 ms) and poor levels of consciousness (Glasgow Coma Scale $<$ 8). Although, TCA toxicity was found to be more likely if plasma levels were $>$ 1,000 $\mu$g/L, plasma drug levels $<$ 1,000 $\mu$g/L have also been associated with toxicity and death. TCA plasma levels had no effects on cardiac and neurological damage follow-up or the course of treatment [5, 20, 21]. In the present study, clomipramine levels changed significantly over time in all groups. Although the clomipramine level increased consistently over time in the NaHCO${}_3$ treatment group, the levels began to fall at the end of the first hour in the ILE and glucagon treatment groups (Fig. 2). These differences in clomipramine levels may be due to differences in the physiological mechanisms, such as different amounts of drug being absorbed from the gastrointestinal tract, due to different intoxication times among the subjects, alterations in pH values, changing the proportions of bound and free drug fractions, and changes in the amount of drug that enters the enterohepatic cycle, due to changes in gastric motility [3]. Therefore, serum levels of clomipramine may not represent a sufficiently sensitive or accurate parameter for the evaluation of intoxication and its consequences.

Despite limited clinical evidence, ILE has been recommended as a promising treatment for refractory hemodynamic instability associated with the severe toxicities induced by lipophilic drugs. The original indication for ILE use was systemic toxicity due to local anesthetic complications. ILE treatment is used to treat verapamil, metoprolol, and TCA overdose. However, no consensus currently exists regarding the use of ILE for TCA intoxication because most literature describes case reports, rather than large case series. In experimental TCA intoxication studies, clomipramine-induced hypotension was found to recover faster and more completely following ILE infusions compared with NaHCO${}_3$ treatments. In addition, ILE treatment is recommended to be delivered as bolus infusions, in repeated doses. ILE has been placed in the advanced life support guidelines established in 2015 by the American Heart Association (AHA) because it has been used as a life-saving treatment for many intoxication conditions. According to the AHA guideline, ILE has been reported to be accepted for use, together with the standard resuscitation treatment, in patients who experience neurotoxicity or cardiac arrest associated with the systemic toxicity of local anesthetics and other drug toxicities [22, 23, 24]. However, no significant differences were observed between the ILE and NaHCO${}_3$ treatment groups with regard to the MAP and QRS variables, in this study. In the present study, ILE treatment was not found to be more effective than glucagon treatment for reversing cardiovascular depression (Fig. 1). These results are not consistent with those of previous studies, which indicated the use of lipid emulsions as antidote treatments for lipid-soluble drug intoxication.

Glucagon, administered via the IV route at a dose of 10 mg, should be considered to treat life-threatening hypotension or arrhythmias that are irresponsive to other treatments. Blood pressure was observed to increase and QRS was shortened with the combined use of NaHCO${}_3$ and glucagon in a patient with TCA overdose [5].

Evidence supporting routine glucagon use in TCA overdose is limited. Multiple interventions have attempted to discriminate the effects of glucagon reported by case reports [5, 25, 26]. However, no positive effects of glucagon on hypotension or arrhythmia have been determined in experimentally induced TCA intoxication [27]. In the present study, although significant changes in MAP occurred in the glucagon treatment group, no differences were determined in the ILE and NaHCO${}_3$ treatment groups.

Although NaHCO${}_3$ treatment has been shown to have positive effects on arrhythmia and seizures during TCA intoxication that lead to severe cardiotoxicity, no effect has been reported for QRS [18, 28]. In this study, the rhythm was monitored by ECG at 0, 30, 60, and 120 minutes, in all groups. Although QRS values increased significantly in the sham group, no significant differences were observed in the other treatment groups.

High doses of TCA can lead to respiratory acidosis, resulting in respiratory depression. NaHCO${}_3$ treatment has been recommended for many years because toxicity-related acidosis increases the risks of myocardial depression, arrhythmia, and seizure. During acidosis, the amount of protein-bound TCA increases, whereas the amount of free TCA decreases, which can result in a vicious cycle that worsens respiratory depression [7, 29]. In the present study, although pH values changed significantly in the ILE and NaHCO${}_3$ treatment groups, no significant change was observed in the glucagon treatment group. No significant changes were observed in the HCO${}_3$ values for any of the groups (Table 1).

When all clinical results and biochemical markers were evaluated, promising outcomes indicated that glucagon could be used as an antidote, which can reduce toxic cardiac and neurological effects associated with TCA intoxication. As observed in our study, glucagon infusion eliminated cardiotoxic effects by binding free clomipramine, with positive effects many vital parameters (Fig. 1). However, our study was experimental and should be validated by performing larger studies. In addition, given the positive effects of NaHCO${}_3$ and ILE treatment, the investigation of the combined effects of glucagon and NaHCO${}_3$ treatment could result in more favorable outcomes.

In conclusion, glucagon infusion treatment resulted in better hemodynamic improvements compared with ILE and NaHCO${}_3$ treatments for the prevention of clomipramine-related hypotension, in an experimental model. Although this finding does not provide precise or generalizable evidence, glucagon treatment should be investigated further in future studies, to guide the clinical recommendations for the management of oral lipophilic agent intoxication, such as TCAs. Glucagon should be considered as a potential rescue treatment for severe clomipramine intoxication associated with hemodynamic instability, followed by treatment with NaHCO${}_3$, lidocaine, magnesium sulfate, and vasopressors.

Acknowledgments

Thank numerous individuals participated in this study.

Conflict of interest

The authors report no conflicts of interest in this work.

Financial support

This study was supported by Selçuk Üniversitesi Bilimsel Araştırma Projeleri Koordinatörlüğü.
