Tacrine alleviates neuropathic pain in mice by mimicking the cell adhesion molecule L1

2.1 Animals

Male C57BL/6 mice (4–6 weeks old)weighing 20–25 g were obtained fromthe Animal Experimental Center ofGuangdong, China (Laboratory Animal Certificate: NO: 44200300015927). The mice were housed at the animal center of Guangdong-Hongkong-Macau Institute of CNS Regeneration (GHMICR) of Jinan University, under standard conditions of humidity and temperature, a 12 h of light/dark cycle, and free access to food and water. Sixty mice were allocated to 3 groups (n = 20/group) as follows: (1) Sham Group; (2) Surgery + Vehicle Group; (3) Surgery + Tacrine Group. Drugs were administered after surgery.

2.2 Mouse Chronic Constriction Injury (CCI) model and drug administration

Mice were anesthetized with 10% chloral hydrate. Then the left sciatic nerve was exposed through a small incision. Unilateral sciatic nerve constriction was performed with three loose ligatures using 5-0 silk. Ligatures were spaced at 1-mm intervals. In the Sham Group, the sciatic nerve was just exposed but not ligatured.

Intrathecal injections were performed using a 10 $\mu$L microinjection syringe. The needle was inserted into the intervertebral space of the L5–6 region of the spinal cord and 10 $\mu$L of solution was injected. The reflexive flick of the tail indicated a successful injection. The Sham group received 10 $\mu$L of normal saline

Tacrine was freshly diluted with normal saline and was injected intrathecally into the L5-6 regions at a dose per mouse of 0.2 mg/mL [24] for 28 days after surgery.

2.3 Behavioral testing

The mice underwent daily habituation for 2 days before baseline testing. The mice were placed in an individual Plexiglas chamber with an elevated mesh screen for 30 min before testing. All behavioral tests were carried out 1 h intervals.

Paw-withdrawal frequencies (PWFs) were tested using von Frey fibers. The calibrated von Frey filaments of 0.4 g were used to stimulate the hind paw for 1 s and repeated 10 times. Then PWF was represented as a % response frequency ([number of paw withdrawals/10 trials] $\times$ 100 = % response frequency).

Paw withdrawal latencies (PWTLs) to noxious heat stimulation were tested with the Analgesia Meter (IITC Inc. Life Science Instruments). In brief, each mouse was placed in an individual Plexiglas chamber on a glass plate. A beam of light passed through a hole in the chamber and stimulated the middle of each hind paw. If the mouse withdraws its foot, the light beam automatically turns off. The PWTL was recorded as the length of time from the start of light beam to the foot withdrawal, five times, with a cut-off time of 20 s being applied to avoid hind paw injury. Cold hyperalgesia was assessed using the cold plate test in mice [25]. Each mouse was placed onto the cold plate in turn (IITC Inc. Life Science Instruments) at a temperature of 5 ${}^{\mathrm{o}}$C $\pm$ 0.2 ${}^{\mathrm{o}}$C. The frequency of lifting, flinching, or scratching its hind paw was recorded. Each ipsilateral and contralateral hind paw was tested for 5 min.

2.4 Immunofluorescence staining

Mice were perfused with 200 mL of 4% paraformaldehyde (pH 7.4) after being anesthetized with 3% isoflurane. L5 segments were then harvested, fixed at 4 ${}^{\mathrm{o}}$C for at least 4 h and then dehydrated in 30% sucrose overnight. The tissues were sectioned at a thickness of 20 $\mu$m on a freezing microtome. The sections were then blocked with PBS containing 10% goat serum and 0.3% Triton X-100 for 2 h at 37 ${}^{\mathrm{o}}$C, and then incubated at 4 ${}^{\mathrm{o}}$C with primary antibody overnight. They were then incubated for 2 h at room temperature with the second antibody. All immunofluorescence images were observed using a Leica DMI4000 fluorescence microscope and captured with a DFC365FX camera (Leica, Germany).

2.5 Western blot analysis

After administration of tacrine for 28 days, mice were decapitated and the ipsilateral L5 spinal cords were removed. The tissues were separately homogenized with ice-cold lysis buffer containing 0.25 M sucrose, 10 mM Tris, 2 mM MgCl${}_2$, 5 mM EGTA, 1 mM phenyl methylsufonyl fluoride, 1 mM DTT, and 40 mM leupeptin. After the crude homogenate was centrifuged at 4 ${}^{\mathrm{o}}$C for 15 min the supernatants were collected and the total protein concentration in each sample was measured by BCA protein assay (Keygen Biotech, China). Each sample was heated at 99 ${}^{\mathrm{o}}$C for 10 min and then loaded onto a 4% stacking/10% separating SDS-polyacrylamide gel (Bio-Rad Laboratories). Then the protein was transferred onto a PVDF membrane (Millipore, USA). After blocking of nonspecific binding sites by 5% non-fat milk in Tris-buffered saline containing 0.1% Tween-20 for 1 h, the membranes were incubated with the respective primary antibody overnight. These antibodies included mouse anti-L1 (1 : 1000, ab24345, Abcam), rabbit anti-JAK2 (1 : 2000, ab108596, Abcam), anti-STAT3 (1 : 1000, ab68153, Abcam), and mouse $\beta$-actin (1 : 2000, 3700s, CST), overnight at 4 ${}^{\mathrm{o}}$C. The membranes were washed three times for 10 min each, and then incubated with horseradish peroxidase conjugated IgG anti-mouse (1 : 3000, 7076s, CST) or IgG anti-rabbit secondary antibody (1 : 3000, 7074s, CST), and were visualized by western peroxide reagent and luminol/enhancer reagent (Clarity western ECL Substrate, Bio-Rad). Image lab software was used to exposed and quantified the intensity of the membranes.

2.6 Enzyme-linked immunosorbent assay (ELISA)

The protein level of interleukin-1$\beta$ (IL-1$\beta$), interleukin-6 (IL-6) and tumor necrosis factor-$\alpha$ (TNF-$\alpha$) were measured by ELISA kits (R&D Systems, Minneapolis, MN, USA) using the manufacturers’ protocol.

2.7 Statistical analysis

Statistical calculations and analyses were carried out using GraphPad 6.0 (GraphPad Software, La Jolla, CA, USA). Data were presented as the mean $\pm$ SEM. The difference between two groups was analyzed by a two-tailed Student’s test. Then 5% or less confidence interval was considered to be statistically significant.

3.1 CCI-induced mechanical allodynia, heat hyperalgesia and cold allodynia over time

The CCI model was established in mice to simulate neuropathic pain. Compared with sham-operated groups and the contralateral hind paw of the CCI group, the PWF of the ipsilateral CCI group significantly increased and remained at a high level for 4 weeks (p $<$ 0.05, Fig. 1A). CCI also induced a significant heat hyperalgesia in mice. The PTWL of the ipsilateral hind paw decreased, showing increased sensitivity to radiant heat (p $<$ 0.05, Fig. 1B). Fig. 1C showed the cold-allodynia responses of each group. After CCI, the mean time of response showed a peak on day 7 and then decreased gradually.

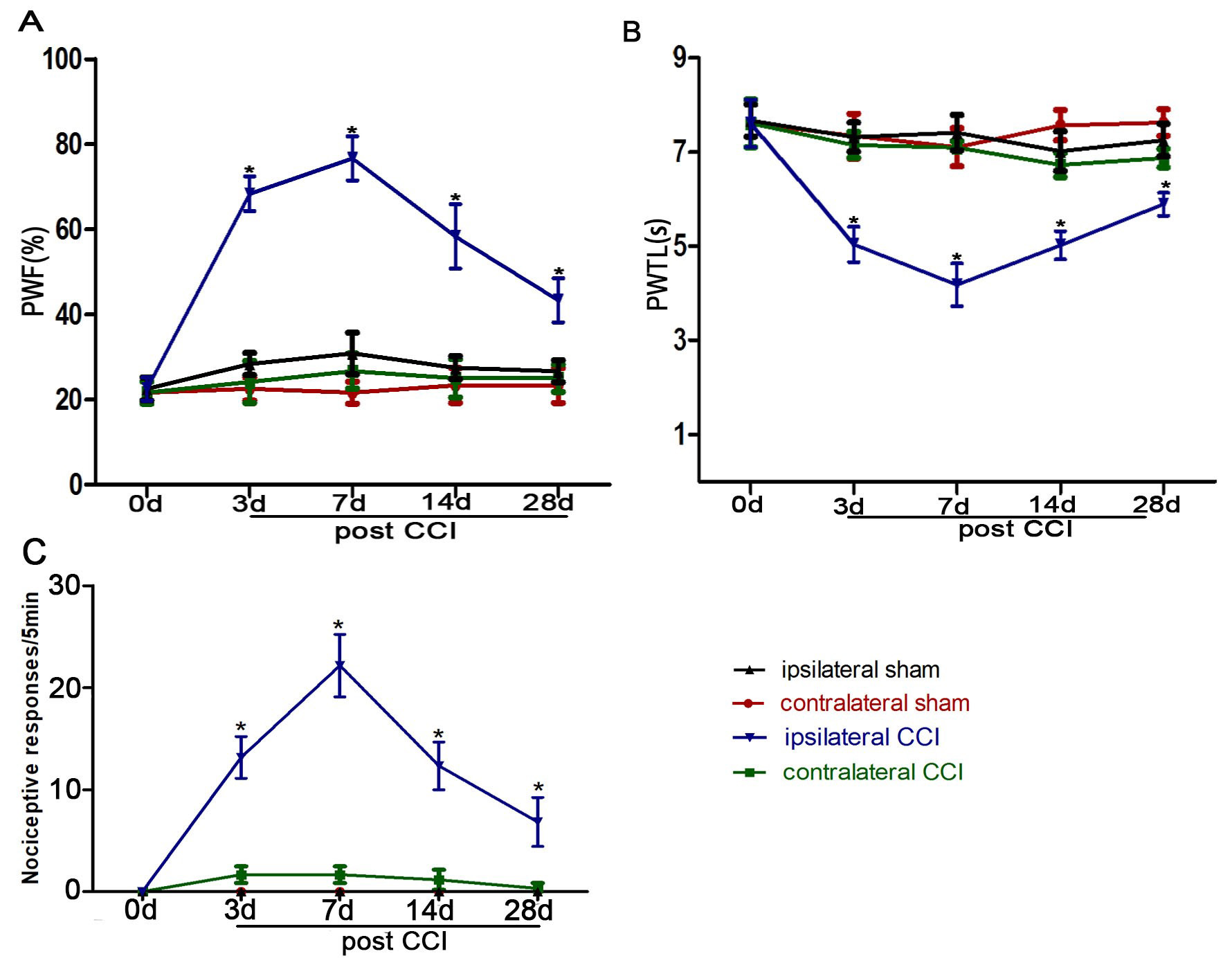

Fig. 1.CCI induced mechanical allodynia, heat hyperalgesia and cold allodynia throughout the experimental period of 28 days. Data are expressed as mean $\pm$ SEM; n = 10 per group. (A) The bilateral paw withdrawal frequencies (PWFs) to mechanical stimuli were evaluated in the sham and CCI groups (*p $<$ 0.05 versus the sham ipsilateral group). (B) The bilateral paw withdrawal latencies (PWTLs) were detected in each group (*p $<$ 0.05 versus the sham ipsilateral group). (C) The change of nociceptive response time in cold plate test in each group (*p $<$ 0.05 versus the sham ipsilateral group).

3.2 CCI reduced the expression of L1 protein in spinal cord

To explore L1 during NP, we examined the expression of protein in L5 spinal cord by western blotting (Fig. 2A). The level of L1 decreased over time after CCI surgery compared with the sham group (p $<$ 0.05, Fig. 2B), indicating that L1 may be involved in the pathological process of CCI-induced NP.

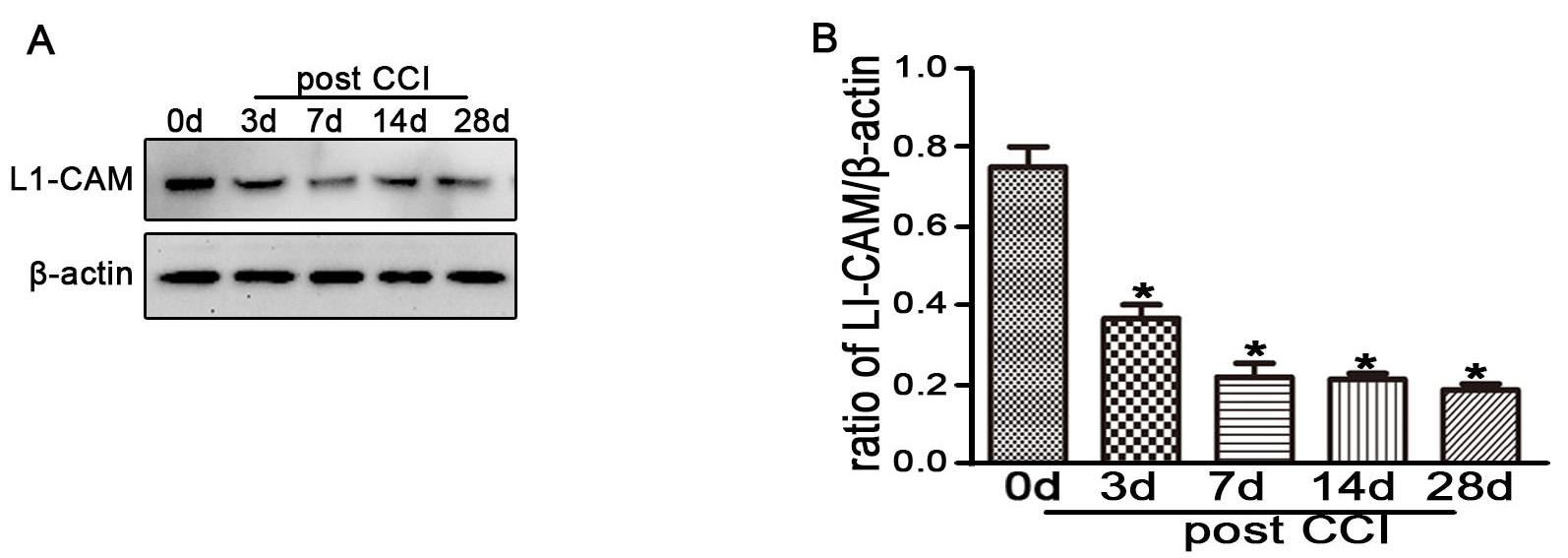

Fig. 2.L1 expression was decreased in the dorsal spinal cord during CCI-induced NP. (A) L1 expression in spinal cord detected by western blotting after CCI. (B) Statistical analysis of the differences between groups (n = 3). Data are presented as the means $\pm$ SEM. *p $<$ 0.05 versus the sham group.

3.3 Intrathecal injection of Tacrine alleviates CCI-induced pain hypersensitivity

We tested the effect of Tacrine on alleviating pain and inflammation caused by CCI through behavioral test. The chemical structure of Tacrine was shown in Fig. 3A. There was no variation in PWF between groups before surgery (Fig. 3B). Mice subjected to CCI injury showed persistent mechanical allodynia compared to the sham group (p $<$ 0.05). However, administration of Tacrine resulted in an obvious decrease in PWF in comparation with the CCI vehicle group (p $<$ 0.05). Data showing the effects of Tacrine on PWTL is presented in Fig. 3C. There was no significant between-group difference (p $>$ 0.05) in PWTL before CCI surgery. Compared with the sham group, the CCI mice were obviously more sensitive to the radiant heat over 28 days after injury. However, the mice receiving Tacrine exhibited a significantly longer effect than did the CCI group (p $<$ 0.05) (Fig. 3C). Different groups of mice were also given the cold plate test (Fig. 3D). The mice did not show any significant between-group difference in the baseline data. After CCI, the vehicle group number of responses was markedly increased, especially on Day 7 post surgery, whereas, the Tacrine group (250 nmol/d) showed significantly fewer responses (p $<$ 0.05) (Fig. 3D). From the behavioral results above, it seems clear that Tacrine alleviated CCI-induced pain hypersensitivity.

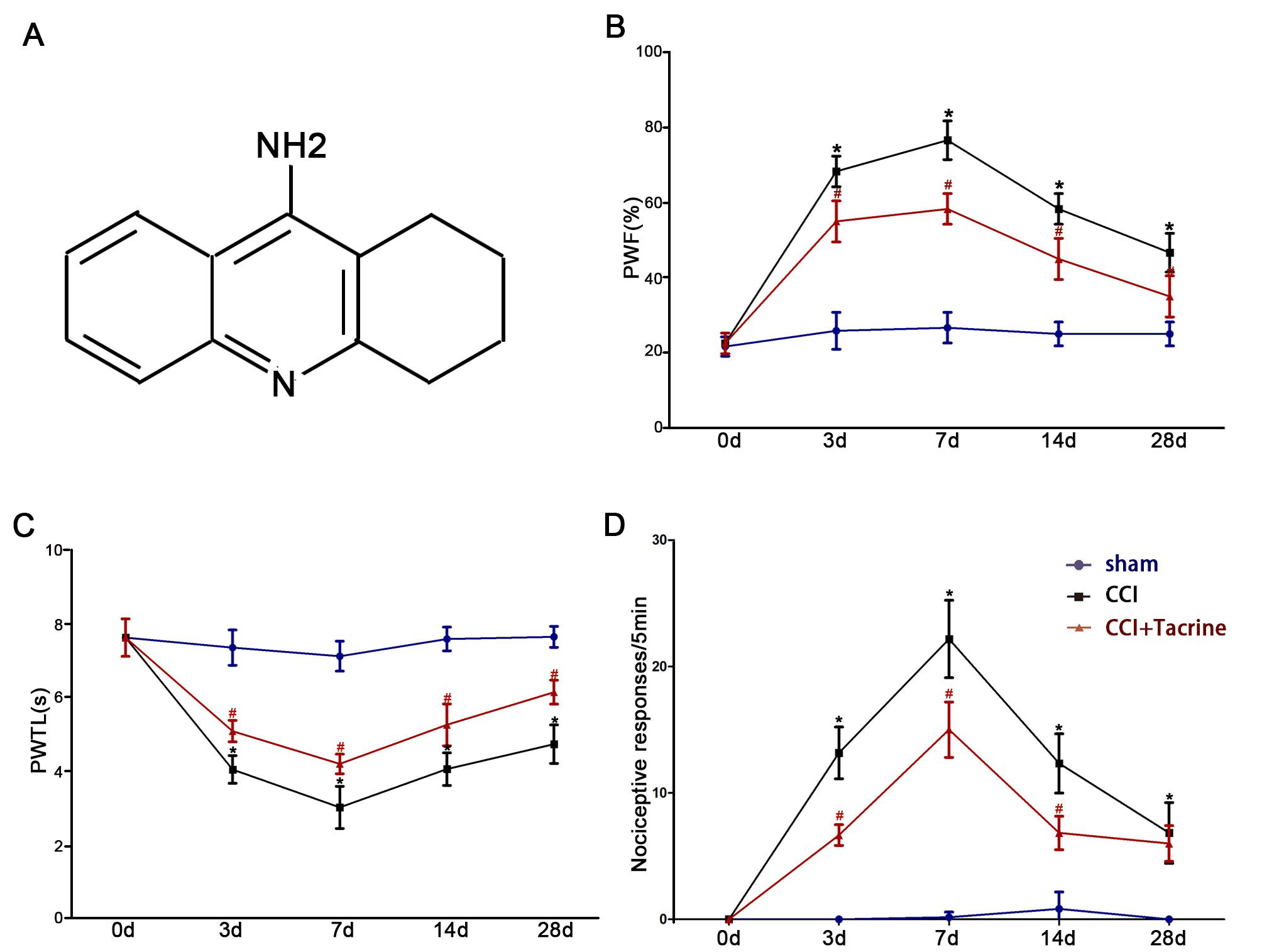

Fig. 3.Tacrine treatment prevents CCI-evoked hyperalgesia in mice. (A) The chemical structural formula of tacrine. (B) The ipsilateral paw-withdrawal frequency (PWF) to mechanical stimuli in each group (n = 10). (C) The ipsilateral paw-withdrawal latency (PWTL) to heat stimuli of different groups (n = 10). (D) The ipsilateral paw nociceptive responses to cold plate in each group (n = 10).

3.4 Tacrine changed the expression of CGRP and NF200 in spinal cord

We studied nociceptive fibers by using anti-calcitonin, gene-related peptide (CGRP) immunostaining. As shown in Fig. 4A, a,b,c, CGRP-positive fibers mostly terminated in lamina I of spinal dorsal horn. The positive expression of CGRP was increased in the vehicle group when compared to the sham group (Fig. 4A, a,b); intrathecal injection of Tacrine attenuated the expression of CGRP in the spinal dorsal horn (Fig. 4A, b,c). Statistical result of the density of CGRP-positive fibers between groups was shown in Fig. 4A, d. NF200 protein not only reflects the neuronal cytoskeleton but also reflects the functional status after injury. As shown in Fig. 4B, we found that administration of Tacrine increased the expression of NF200 in the superficial layers of spinal cord. The results indicate that Tacrine exerts therapeutic effects on neuropathic pain after CCI.

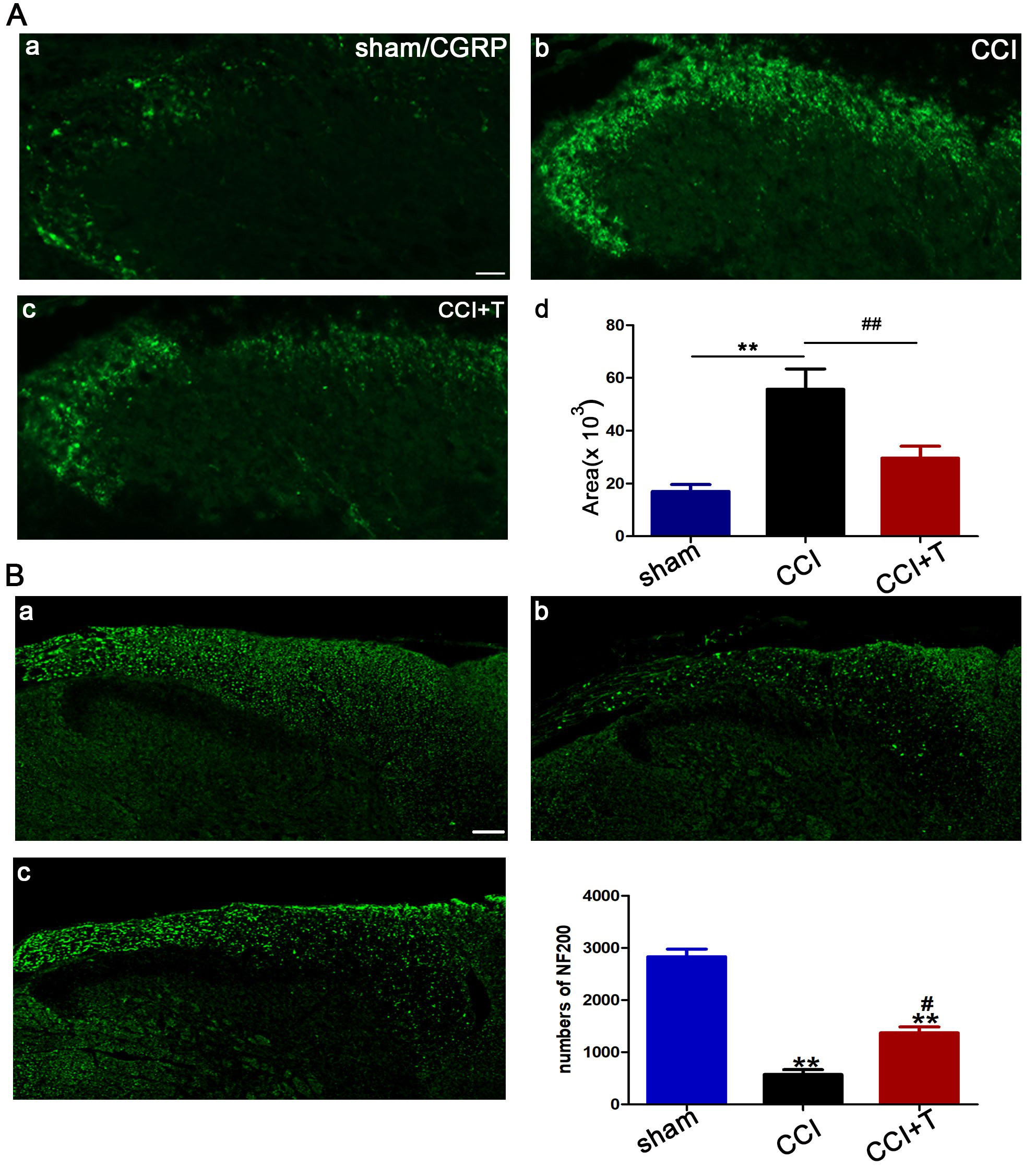

Fig. 4.Tacrine changed the expression of CGRP and NF200 after CCI-injury. (A) Anti-CGRP immunostaining was carried out transverse spinal sections in sham group (A-a), CCI group (A-b) and CCI + Tacrine group (A-c). Statistical analysis of integrated density of anti-CGRP fiber in each group (d, n = 6). (B) Anti-NF200 immunostaining of transverse spinal sections in sham group (B-a), CCI group (B-b) and CCI + Tacrine group (B-c). Statistical analysis of numbers of NF200 in each group (n = 6). *p $<$ 0.05, **p $<$ 0.01 versus the sham group; ${}^{\mathrm{\#}}$p $<$ 0.05, ${}^{\mathrm{\#\#}}$p $<$ 0.05 versus the CCI group. Scale bars indicated 200 $\mu$m.

3.5 Administration of Tacrine significantly suppressed the activation of astrocytes and microglia induced by CCI

The activation of glial cells was evaluated by immunofluorescence staining and western blotting. We observed that GFAP detected by immunofluorescence staining was highly expressed after CCI and was decreased after treatment with Tacrine (Fig. 5A). The statistical result of GFAP in each group was shown in Fig. 5B. The protein content of GFAP in each group was detected by western blotting (Fig. 5C); we detected that the level of GFAP protein increased in CCI mice, and Tacrine decreased the expression of GFAP after CCI from 2.54 $\pm$ 0.19 to 2.01 $\pm$ 0.02 (p $<$ 0.05) (Fig. 5D). It was also detected that IBA-1, examined by immunofluorescence staining, was obviously increased after CCI but reduced sharply after treatment with Tacrine (Fig. 6B). There was a consistent relationship between IBA-1 and GFAP. Furthermore, IBA-1 protein level was examined by western blotting (Fig. 6C), and was found to decrease from 1.87 $\pm$ 0.13 in CCI group to 1.52 $\pm$ 0.096 (p $<$ 0.05) in the Tacrine group (Fig. 6D). The result verified that Tacrine suppressed the activation of glial cells after CCI.

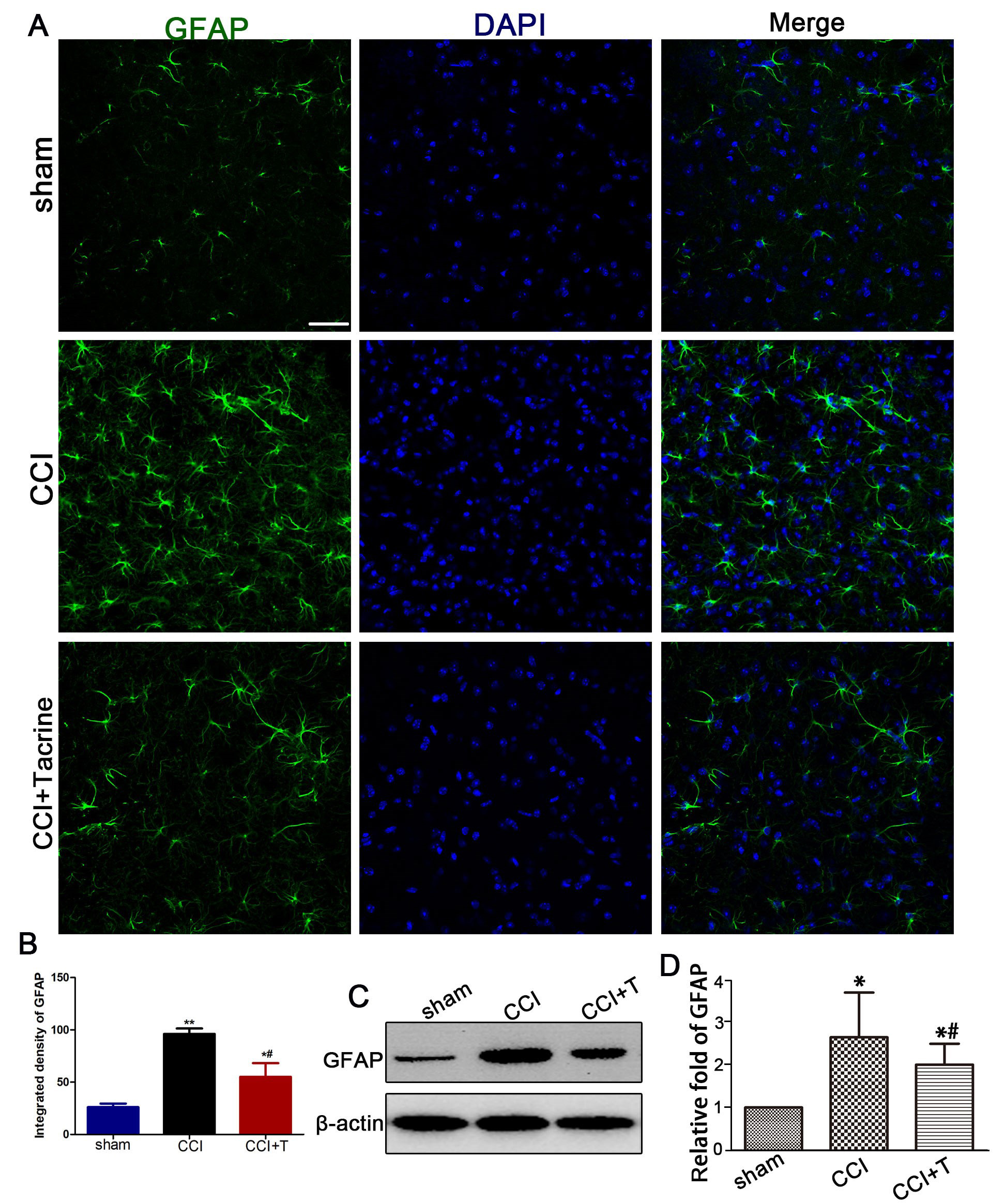

Fig. 5.Tacrine depressed the activation of astrocytes after CCI-injury. (A) Representative immunofluorescence staining of the astrocytic marker GFAP and the nucleus marker DAPI on the ipsilateral spinal cord (scale bar 50T $$m) in each group were shown. (B) Statistical analysis of integrated density of GFAP in each group (n = 6). (C) GFAP expression in spinal cord detected by western blotting after CCI. (D) Statistical analysis of the differences between groups (n = 6). *p $<$ 0.05; ${}^{\mathrm{\#}}$p $<$ 0.05, versus the CCI group.

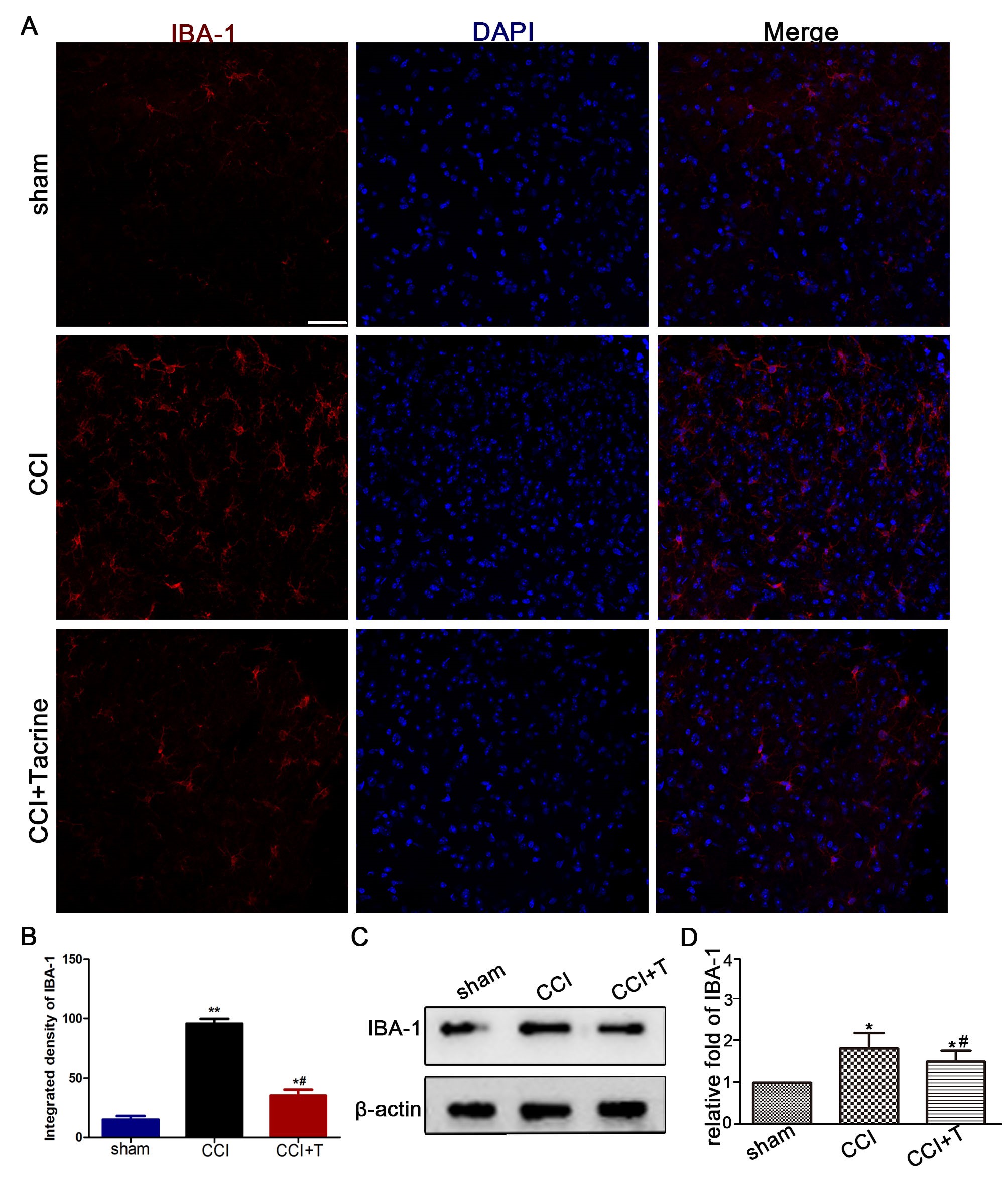

Fig. 6.Tacrine decreased the expression of IBA-1 after CCI-injury. (A) Representative immunofluorescence of the microglial marker IBA-1 on the ipsilateral spinal cord (scale bar 50 $\mu$m) in each group were shown. (B) Statistical analysis of integrated density of in each group (n = 6).(C) IBA-1 expression in spinal cord detected by western blotting after CCI. (D) Statistical analysis of the differences between groups (n = 6). *p $<$ 0.05, **p $<$0.01 versus the sham group; ${}^{\mathrm{\#}}$p $<$ 0.05,versus the CCI group.

3.6 Administration of Tacrine significantly reduced the pro-inflammation cytokines in ipsilateral spinal cord but not in serum after CCI

Glia reaction is an important indicator of neuroinflammation after NP and should be associated with changes of cytokines. To test this, levels of IL-1$\beta$ (Fig. 7A,D), IL-6 (Fig. 7B,E), and TNF-$\alpha$ (Fig. 7C,F) were examined by ELISA in both ipsilateral spinal cord and serum on day 28 after CCI. NP induced an obvious increase of IL-1$\beta$ (p $<$ 0.01), IL-6 (p $<$ 0.01) and TNF-$\alpha$ (p $<$ 0.01) in ipsilateral cord but not in serum (p $>$ 0.05). CCI may have induced local inflammation but not affected systemic inflammation. After the administration of Tacrine, levels of these pro-inflammatory cytokines in spinal cord significantly decreased. The empirical result shown was that the neuroinflammation induced by CCI was mainly involved in ipsilateral spinal cord, and intrathecal injection of Tacrine significantly alleviated NP possibly by reducing pro-inflammation cytokines.

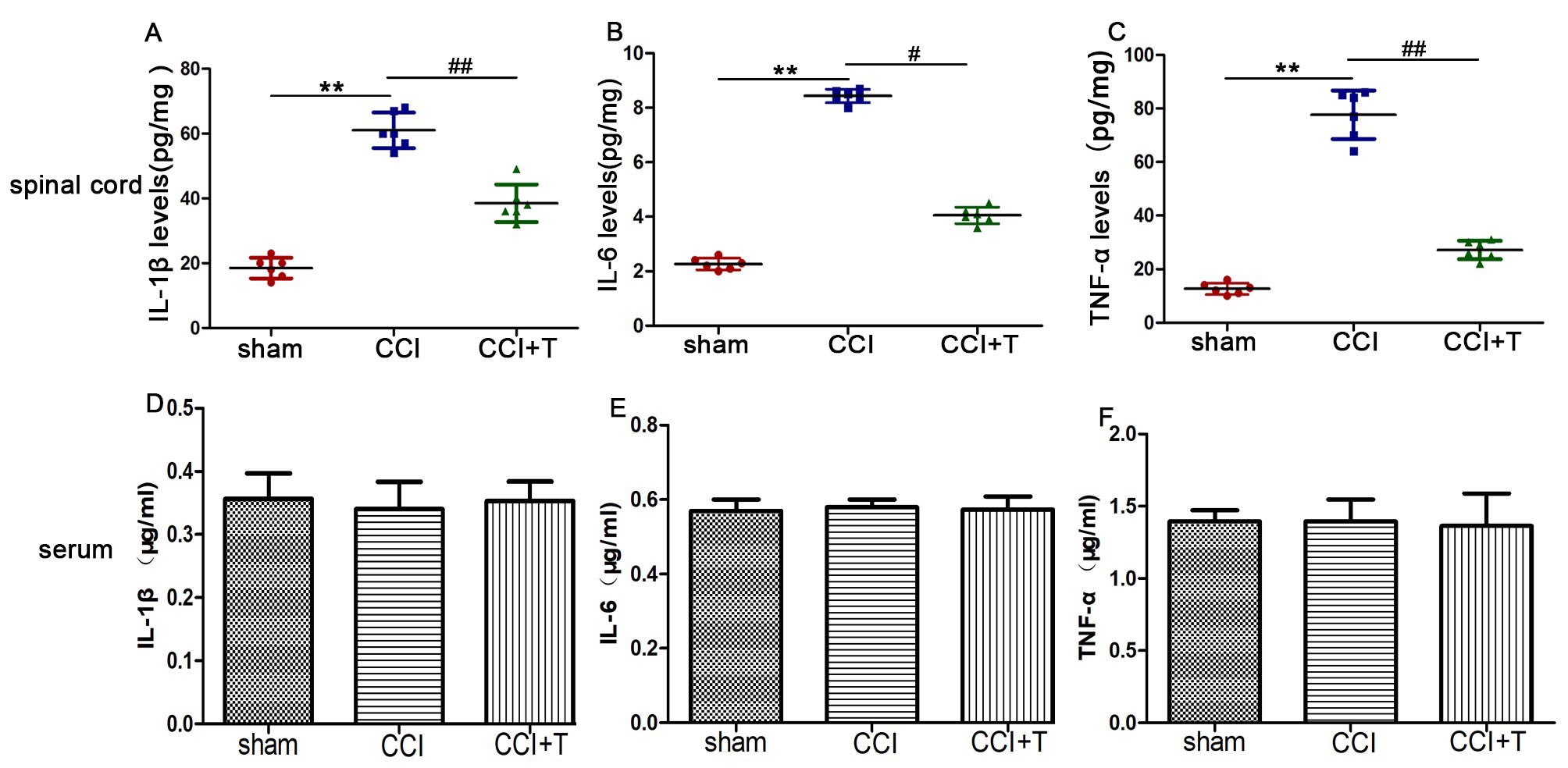

Fig. 7.Tacrine decreased the level of IL-1$\beta$, IL-6 and TNF-$\alpha$ in spinal cord but not in serum. (A) Spinal cord level of IL-1$\beta$. (B) Spinal cord level of IL-6. (C) Spinal cord level of TNF-$\alpha$. (D) Blood plasma level of IL-1$\beta$. (E) Blood plasma of IL-6. (F) Blood plasma of TNF-$\alpha$. Values represent mean $\pm$ SEM (n = 6). *p $<$ 0.05, **p $<$ 0.01 versus the sham group; ${}^{\mathrm{\#}}$p $<$ 0.05, versus the CCI group.

3.7 The administration of Tacrine inhibits the JAK2/STAT3 signaling pathway in CCI-induced NP

The JAK2/STAT3 signaling pathway is a critical mediator influenced by cytokines in the neuroinflammation [26]. Therefore, inhibition of the JAK2 signaling pathway is an important strategy for alleviating neuropathic pain. To assess whether the administration of Tacrine after CCI imposes any effect on JAK2/STAT3 signaling, we studied JAK2- and STAT3-immunoreactive cells by immunofluorescence of spinal sections and detected their protein expression. Only a few neurons (NeuN-positive) were positive for JAK2 in the sham group. However, CCI induced JAK2 expression in a higher number of spinal neurons (Fig. 8A). After intrathecal injection of Tacrine, the JAK2-positive neurons decreased compared with the vehicle group. To further confirm these results, we collected samples and performed western blotting (Fig. 8B). As shown in Fig. 8C, the CCI obviously increased the expression of JAK2 compared with the sham group (p $<$ 0.01), whereas the elevation of JAK2 was inhibited by Tacrine (p $<$ 0.05). Similarly, CCI induced the increased expression of STAT3 in spinal neurons (Fig. 8D), and an elevation of STAT3 protein (Fig. 8E), whereas Tacrine resulted in a down-regulation of STAT3 including less STAT3-immunoreactive neurons and lower levels of proteins than the CCI group (p $<$ 0.01) (Fig. 8F). These data suggest that intrathecal injection of Tacrine effectively inhibits the JAK2/STAT3 signaling pathway, which consequently contributes to alleviation of NP.

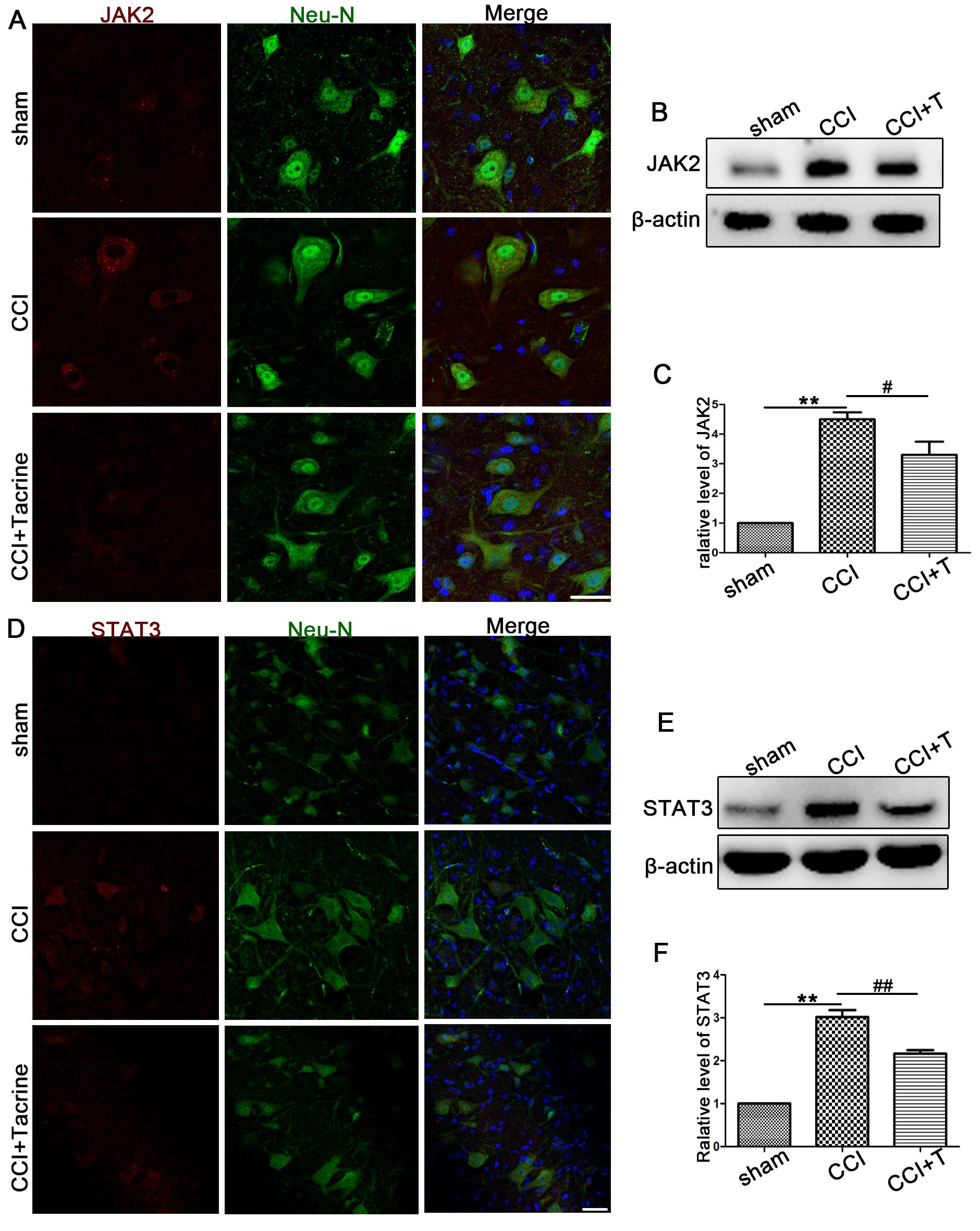

Fig. 8.The effect of Tacrine on the expression of JAK2/STAT3 in spinal cord. (A) Representative immunofluorescence staining of JAK2, the neuron marker Neu-N and add the nucleus marker DAPI overlay to form Merge (scale bar 50 $\mu$m). (B) JAK2 expression in spinal cord detected by western blotting of each group. (C) Statistical analysis of the protein differences between groups (n = 6). (D) Representative immunofluorescence staining of STAT3, the neuron marker Neu-N and add the nucleus marker DAPI overlay to form Merge (scale bar 100 $\mu$m). (E) STAT3 expression in spinal cord detected by western blotting of each group. (F) Statistical analysis of the protein differences between groups (n = 6).
