Signa Vitae. 2021; 17(6): 8-17. doi: 10.22514/sv.2021.131
Review

Airway management in vascular central airway obstruction: a literature review

Shih-Yi Lee1,2,†, Chuan-Lei Chao2,3,†, Sho-Ting Hung2,4, Hwee-Kheng Lim2,5,†, Hui-Chun Ku6,*,

1Division of Pulmonary and Critical Care Medicine, Department of Internal Medicine, Taitung MacKay Memorial Hospital, MacKay Memorial Hospital, 104 Taipei, Taiwan

2Nursing, and Management, MacKay Junior College of Medicine, 11260 Taipei, Taiwan

3Division of Cardiology, Department of Internal Medicine, Taitung Mackay Memorial Hospital, 950 Taitung, Taiwan

4Department of Radiology, Taitung MacKay Memorial Hospital, 950 Taitung, Taiwan

5Division of Infectious Diseases, Department of Medicine, Taitung MacKay Memorial Hospital, 950 Taitung, Taiwan

6Department of Life Science, Fu Jen Catholic University, 242 New Taipei City, Taiwan

*Corresponding Author(s):141655@mail.fju.edu.tw (Hui-Chun Ku)

† These authors contributed equally.

† These authors contributed equally.

History Submitted: 01 June 2021 | Accepted: 01 July 2021 | Published: 08 November 2021
Copyright:  ©2021  The Author(s). Published by MRE Press.
This is an open access article under the CC BY 4.0 license (https://creativecommons.org/licenses/by/4.0/).

Collapse table of contents

Abstract

Vascular central airway obstruction (CAO) is a rare cause of upper airway obstruction in adults. CAO occurs below the level where it is invisible in a laryngoscope. Doctors therefore should pay attention to the possibilities of vascular CAO when attempting to prevent and resolve catastrophic complications from upper airway obstruction such as cardiorespiratory collapse and hemoptysis, which requires a thoughtful preoperative planning of airway management before starting a surgical reconstruction.

Keywords:Aneurysm;Aortic arch;Pulmonary artery;Difficult airway;Vascular rings
PDF(603.23 KB)|EndNote (RIS)|BibTeX|RefMan|RefWorks

Cite this article

Shih-Yi Lee, Chuan-Lei Chao, Sho-Ting Hung, Hwee-Kheng Lim, Hui-Chun Ku. Airway management in vascular central airway obstruction: a literature review. Signa Vitae. 2021; 17(6): 8-17. doi: 10.22514/sv.2021.131

1. Introduction

Airway obstruction causes airway flow limitation [1, 2]. Upper airway is defined as the conduit between the nose or mouth and the carina [3]. Obstruction anywhere in this conductive airway may result in asphyxia and associated lethal complications [4, 5]. Central airway obstruction (CAO) is caused by the obstructive lesions involving the area from the trachea to the mainstem bronchi [6] where it is not visible by a laryngoscope during emergency airway management. Therefore, medical care for CAO requires knowledge and skills; in additional to that, one needs to deal with upper airway obstruction above the vocal cords [7, 8].

Among the benign cause of upper airway obstruction [8, 9, 10, 11, 12], vascular anomaly is relatively uncommon. The vascular lesions compress or obstruct the airway involving the trachea or mainstem bronchi, potentially causing vascular CAO [13, 14], and because of congenital anomalies, it is more recognized in children [15, 16, 17] than in adults [18]. The low incidence of vascular CAO in adults may lead to a low threshold of suspicion for the diseases when dealing with patients having signs of upper airway obstruction and cause unexpected potentially lethal complications not only from airway compression such as respiratory insufficiency [19], but also from vascular-related complications, for example, massive hemoptysis [20], aortic dissection, and aortic rupture [21, 22, 23].

The rarity and high mortality of vascular CAO have got the attention of the doctors and have extensively been studied in the literature; however, to our best knowledge, it has been a decade since the last review focusing on vascular CAO in adults [18, 24, 25], and only some of them focus on airway management in vascular CAO [26]. Therefore, we start a review for the challenges in airway management among adult patients with vascular CAO.

2. Material and methods

2.1 Criteria for the inclusion of studies in the systematic review

This literature review included the publications of vascular CAO in adults who are equal or above 18 years of age, published in English until June 20, 2021. Only full-text articles were analyzed, as abstracts are not sufficient for a detailed analysis. The inclusion and exclusion criteria for literature sources are shown in Table 1.

Table 1.Inclusion and exclusion criteria for literature sources.
VariableInclusion criteriaExclusion criteria
Age≥18 years of age<18 years of age
Study populationHumansAnimals
Topic investigatedVascular CAOTopics out of the scope of vascular CAO: lesions
without vascular involvement, lesions without airway
obstruction, or airway obstruction without central
airway involvement.
LanguageEnglishOther languages
PeriodPublished from January 1, 1972 to June 20, 2021Published before 1972
CAO, central airway obstruction.

2.2 Strategy of search for publications

Search for publication was performed in the PubMed database. Fig. 1 depicts the key words for search and the detailed process of study identification and selection.

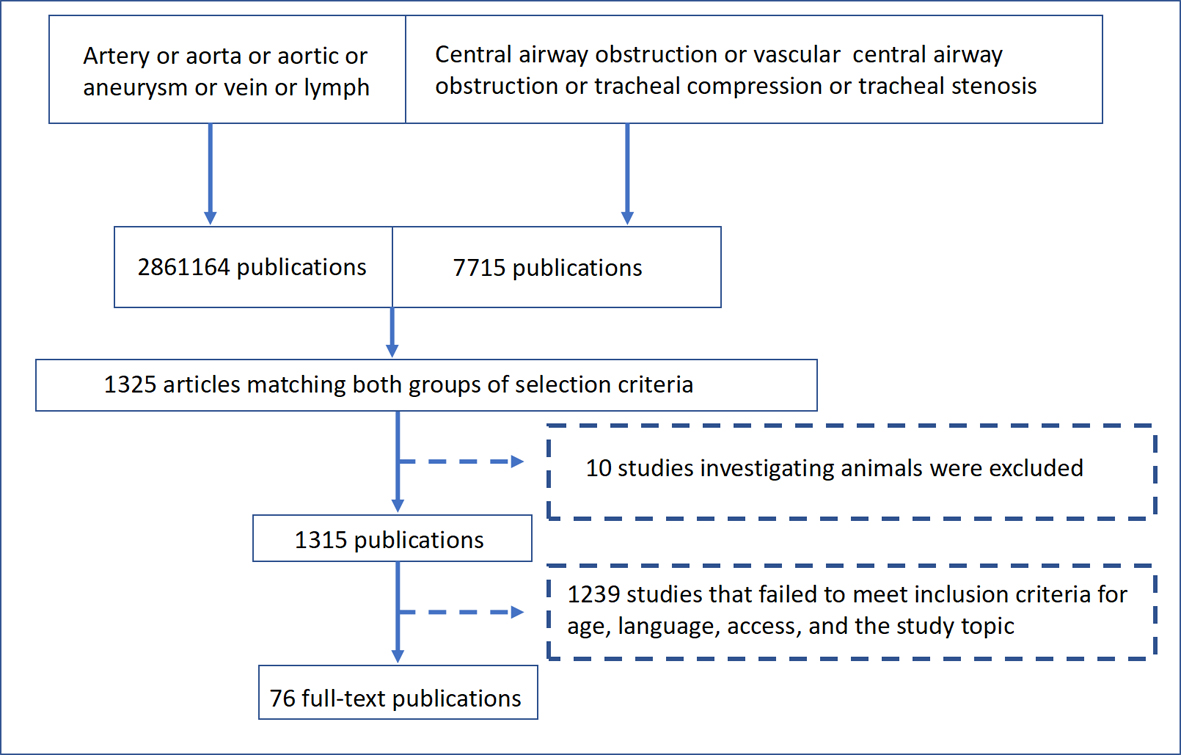

A flow chart of study search and selection for systematic review in the study.

Fig. 1.A flow chart of study search and selection for systematic review in the study.

2.3 Data systematization and analysis

After a detailed search for publications, a total of 76 full-text publications meeting all inclusion criteria were identified. This literature review included 76 studies, and their analysis was performed based on the set aim and objectives. The following data were extracted from the publications analyzed: general information (year and gender) and characteristics of the cases in the studies (symptoms, signs, types and causes of vascular lesions, experience of management, and results).

3. Etiologies of vascular CAO

Vascular CAO in adults can be congenital or acquired. According to the mechanisms leading to airway obstruction, it can be classified into extrinsic and intrinsic vascular CAO. Vascular lesions that externally compress the central airways cause extrinsic CAO [18], whereas vascular lesions leading to intraluminal airway obstruction cause intrinsic vascular CAO [27].

Table 2 shows congenital extrinsic vascular CAO caused by central vascular anomalies or congenital heart diseases. Congenital vascular anomalies may be symptomatic soon after birth [28, 29], or become respiratory insufficiency in childhood [30, 31, 32], or symptoms may appear in adulthood [33, 34]. Therefore, the frequency of congenital vascular anomalies that present in adults is different from those that occur in children [18, 25, 35, 36]. In spite of its rarity, vascular rings, such as left aortic arch with aberrant right subclavian artery [36, 37, 38], right aortic arch with aberrant left subclavian artery [38, 39, 40, 41, 42, 43], double aortic arch [44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54], right-sided double aortic arch coexistence with a right-sided descending thoracic aorta [55], and pulmonary artery sling [56, 57, 58]; aneurysms arising from congenital aortic arch anomaly— Kommerell’s diverticulum [21, 22, 59, 60, 61] and cervical aortic arch [62]; Kommerell’s diverticulum in combination with vascular rings [63]; right-sided aortic arch [64]; and anomalous innominate artery [65] can cause vascular CAO in adults. Also, congenital heart diseases that cause aneurysmal artery dilation, for example, atrial septal defect accompanied with dilated right pulmonary artery [66], and pulmonary atresia with aneurysmally dilated aortopulmonary collateral arteries in Tetralogy of Fallot [32] may obstruct the tracheobronchial tree in adults when the extraluminal pressure arising by the dilated arteries exceeds the durability of the airway.

Table 2.Etiologies of congenital extrinsic vascular CAO.
EtiologiesReferences
Congenital vascular anomalies
Vascular rings[35]
- Double aortic arch[44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54]
- Right-sided double aortic arch and descending aorta[55]
- Double aortic arch with Kommerell’s diverticulum[63]
- Left aortic arch
with right ligamentum arteriosum and right descending aorta[33]
with aberrant right subclavian artery[36]
with aberrant right subclavian artery and Kommerell’s diverticulum[38]
- Right aortic arch[64]
with aberrant left subclavian artery and left ligamentum arteriosum[36, 39, 43]
with aberrant left subclavian artery and Kommerell’s diverticulum[38, 40, 41, 42, 43]
- Pulmonary artery sling[56, 57, 58]
Congenital aortic arch anomaly
- Kommerell’s diverticulum[21, 22, 59, 60, 61]
- Cervical aortic arch aneurysm[62]
Congenital innominate artery anomaly
- Anomalous innominate artery[65]
Congenital heart diseases
Pulmonary atresia and major aortopulmonary collateral arteries in Tetralogy of Fallot[32]
Atrial septal defect[66]
CAO, central airway obstruction.

Table 3 shows acquired extrinsic vascular CAO caused by arterial aneurysm of central vascular system or extremely thoracic anatomy. Arterial aneurysms of the innominate artery [20, 26, 67, 68, 69, 70, 71], ascending aorta [71, 72, 73, 74], aortic arch [73, 74, 75, 76, 77, 78], descending thoracic aorta [74, 75, 76, 79, 80, 81, 82, 83, 84], and common carotid artery [85, 86, 87] that compress the central airway are secondary to atherosclerotic degeneration [20, 68, 69, 73, 74, 75, 76, 82, 83, 84], heritable connective tissue disease [77, 78, 79, 80], infection process [67, 81, 85, 86, 88], or aortic dissection [87, 89]. Pulmonary artery aneurysm [90, 91] and pulmonary artery dilation [92, 93, 94] are risk factors of extrinsic vascular CAO, which usually occur below the carina. Besides, extremely abnormal thoracic anatomy has the potential to cause vascular tracheobronchial compression syndrome [95, 96]. Severe kyphoscoliosis in Marfan syndrome causes trachea compression by the innominate artery anteriorly and thoracic spine posteriorly [96], which may be the result of defects in extracellular matrix composition, leading to the compromise of the structural integrity of the trachea, artery, and thoracic skeleton.

Table 3.Mechanisms of acquired extrinsic vascular CAO in adults.
MechanismReferences
Systemic artery system
Atherosclerotic degeneration
Aortic aneurysm of ascending aortic[71, 72, 73, 74]
Aortic aneurysm of aortic arch[73, 74, 75, 76]
Aortic aneurysm of thoracic aorta[74, 75, 76, 82, 83, 84]
Aneurysm of innominate artery[20, 26, 68, 69, 70]
Aneurysms of the ascending aorta and innominate artery[71]
Ruptured thoracic aortic aneurysm[23]
Heritable connective tissue disease
Aortic aneurysm of thoracic aorta in Marfan’s disease[77, 78, 79]
Aortic aneurysm of thoracic aorta and innominate artery in Marfan disease[79]
Aortic aneurysm of thoracic aorta in heritable connective tissue disease[80]
Aortic dissection
Dissected internal carotid artery[87]
Dissected descending aorta[89]
Infection process
Mycotic common carotid aneurysm (Staphylococcus aureus)[85, 86]
Mycotic descending aortic aneurysm (Staphylococcus aureus)[81]
Syphilitic aortic arch aneurysms[88]
Syphilitic innominate aneurysms[67]
Pulmonary artery system
Pulmonary artery aneurysm[90, 91]
Pulmonary artery pseudoaneurysm[91]
Pulmonary artery dilation[92, 93, 94]
Extremely abnormal thoracic anatomy[95]
Severe kyphoscoliosis resulting in trachea compressed by the innominate artery anteriorly and thoracic spine posteriorly in Marfan’s syndrome[96]
CAO, central airway obstruction.

Intrinsic vascular CAO is the intraluminal obstruction of the airway caused by primary and secondary abnormalities of the central airway vasculature, such as bronchial artery aneurysm [27], bronchial varices [97], bronchial arteriovenous malformation [98, 99], and pulmonary artery aneurysm [100], pseudoaneurysm [101], mycotic aneurysm [102], and pulmonary varices [103] (Table 4). The central airway vasculature is a double circulatory system that involves bronchial circulation (a part of systemic circulation) and pulmonary circulation [27]. The bronchial arteries are connected to the pulmonary arteries through microvascular anastomoses at the level of the alveoli and respiratory bronchioles [104]. Therefore, extrinsic and intrinsic vascular CAO may exist together, for example, endobronchial varices associated with bronchial artery aneurysm [105]. Pulmonary atresia in Tetralogy of Fallot, leading to aneurysmatic dilation of aortopulmonary collateral arteries, that externally compresses trachea may be accompanied with hypertrophied bronchial collaterals resulting in intraluminal airway obstruction [32].

Table 4.Etiologies of intrinsic vascular CAO.
EtiologiesReferences
Bronchial circulation
Bronchial artery aneurysm[27]
Bronchial varices[97, 105]
Bronchial arteriovenous malformation[98, 99]
Pulmonary atresia with hypertrophied bronchial collaterals in Tetralogy of Fallot[32]
Pulmonary circulation
Pulmonary artery aneurysm[100]
Pulmonary artery pseudoaneurysm[101]
Mycotic pulmonary artery aneurysm[102]
Pulmonary varices[103]
Extrinsic vascular CAO coexistence with intrinsic vascular CAO
Endobronchial varices associated with bronchial artery aneurysm[105]
Pulmonary atresia with hypertrophied bronchial collaterals and major aortopulmonary collateral arteries in Tetralogy of Fallot[32]
CAO, central airway obstruction.

4. Clinical manifestations of vascular CAO

Trachea and extrapulmonary bronchi are composed of hyaline cartilage that is resistant to external compression. When intrinsic wall weakness of the airway [86] or high external pressure that over the air column can stand, extrinsic CAO occurs [82]. Therefore, some patients present with asymptomatic vascular CAO [47, 48, 49, 56], and the others commonly demonstrate chest discomfort, including chronic cough, recurrent bronchopulmonary infections, stridor, hoarseness, and wheezing [27, 40, 53, 76]. Chronic compression of the airway may lead to laryngotracheal stenosis, laryngomalacia, and tracheobronchomalacia [12, 25, 106], which are related to the critical events of cyanosis, hypoxemia, acute respiratory failure, or fetal hemoptysis [19, 20, 32, 62, 74]. Besides, life-threatening events, such as difficult trachea intubation [56], persistent hypercapnia after trachea intubation [26], and extubation failure [59, 79], may unexpectedly occur, which challenge doctors during emergent airway management in vascular CAO.

Patients with vascular CAO may present with asthma-like symptoms but have poor response to the standard therapy of asthma [33, 39, 41, 52, 58, 94]. In this situation, pulmonary function is helpful to differential diagnosis. Flow-volume loop demonstrating a fixed obstruction pattern with flattening of expiratory portion indicates dynamic intrathoracic obstruction of CAO [1, 8, 40, 96]. Obstructive pattern showing insignificant bronchodilator response is beneficial to exclude the possibilities of asthma [107].

Intrinsic vascular CAO commonly occurs below the lower part of trachea and mainstem bronchi, so they are commonly presented as cryptogenic hemoptysis or an accidental finding under the bronchoscope [27]. Dynamic flexible bronchoscopy (DFB) is helpful for the pathological evaluation of the airway in patients with CAO. Each endobronchial vascular lesion has a distinct pattern of bronchosopic image [27]. DFB may find bronchial artery malformation presenting a non-pulsatile sub-mucosal bulging with dilated mucosal and engorged vessels running on the surface of protrusion [99, 105]; pulmonary artery aneurysm or pseudoaneurysm demonstrating a pulsatile nodule or mass with smooth contour [108]; and bronchial or pulmonary varices showing dilated submucosal vessels protruding into the lumen [97, 103]. Since the coexistence of intrinsic and extrinsic vascular lesions has put patients at risk of fetal hemoptysis in together with asphyxia [32, 105], DFB can help identify intrinsic and extrinsic vascular lesions that cause CAO. A mass with variable extrinsic tracheal compression and collapse while pulsating synchronously with the arterial pulsation indicates a requirement to exclude extrinsic vascular CAO [76, 81] so additional image studies for vascular lesions like contrast CT is recommended [62, 76].

5. Airway management for vascular CAO

Surgical reconstruction is required to cure vascular CAO [8, 19, 20, 62, 71]. Antibiotics are essential for mycotic aneurysm [81, 85, 86]. However, prompt airway management for vascular CAO is critical for the success in the treatment (Table 5).

Table 5.Medical considerations in airway management in vascular CAO.
Intrinsic vascular CAO
Avoid endobronchial biopsy
Extrinsic vascular CAO
Before surgical reconstruction
Multidisciplinary preoperative discussion
- Anticipated difficult intubation
- Anticipated difficult ventilation
- At risk of cardiorespiratory embarrassment after induction anesthesia
Preparation and selection of airway stenting and endobronchial tubes
- Intubation with small caliber endobronchial tubes using bronchoscope
- Airway stenting as bridge therapy before curative treatment or palliative therapy
Anesthesia before artificial airway establishment
- Avoid muscle relaxants
- Mechanical ventilation preparation
- Percutaneous cardiopulmonary support preparation
Diagnosis of extrinsic TBM
- Awake DFB with a thinner scope
- Airway stenting as bridge therapy before curative treatment
During surgical reconstruction
Check residual airway stenosis and/or TBM
Careful interpretation the DFB findings under artificial ventilation
After surgical reconstruction
Airway stenting as bridge therapy before curative treatment
Signs of unexpected CAO and TBM before, during, and after surgical reconstruction
Difficult intubation
Hypercapnia after trachea intubation
Difficulty in passing through the suction tube
Difficulty in weaning from mechanical ventilation
Extubation failure
Airway stenting as palliative therapy before, during, and after surgical reconstruction
Patients with major risk during the curative surgery
Patients fail in the curative surgery
CAO, central airway obstruction; DFB, dynamic flexible bronchoscopy; TBM, tracheobronchomalacia.

5.1 Airway management for intrinsic vascular CAO

Doctors should keep alert on CAO caused by vascular endobronchial lesions because an attempt to biopsy the lesions during bronchoscopy can result in life-threatening bleeding and should be avoided [98, 108]. Vascular embolization or surgical management is the best option for treatment [27].

5.2 Airway management for extrinsic vascular CAO

Delicate interdepartmental perioperative planning is important for patients with extrinsic vascular CAO. Signs of unexpected vascular CAO, preparation and selection of airway stenting and endobronchial tubes, anesthesia before artificial airway establishment, and diagnosis of extrinsic tracheobronchomalacia (TBM) are vital issues that are required to be considered during airway management.

5.2.1 Signs of unexpected vascular CAO

Difficult intubation [56], persistent hypercapnia with/or without oxygen desaturation after trachea intubation [26, 75], difficulty in passing through the suction tube [75, 79], difficulty in weaning from mechanical ventilation [79], and extubation failure that presents with smooth breathing when using endotracheal tube but becoming airflow limitation soon after remove the endotracheal tube [59, 79, 86] should be signs that alert doctors to exclude the possibilities of vascular CAO. Mechanical ventilation variability is another sign of tracheal compression [26, 75, 81, 109], which explains why the patients with CAO still present with low tidal volume, hypercapnia, and arterial oxygen desaturation under the assistance of artificial positive-pressure ventilation.

5.2.2 Preparation and selection of airway stenting and endobronchial tubes

Endotracheal stenting is a therapeutic option for airway stenosis [75]. Technological improvement in endobronchial procedures has provided more options for managing complex cases [77, 82]. In extrinsic vascular CAO, the trachea may be compressed by vascular lesions with high pressure that metallic endobronchial stents rather silicon stent can stand [75, 82]; variable tracheal compression and collapse requires expandable stents [83]; and the possibility of coexistence with tracheomegaly needs a custom-made and fully covered metallic stent [77]. Expandable metallic stent placement offers a rapid, effective, and custom-made approach to restore airway patency. However, complications of airway stenting such as acute life-threatening airway closure [62, 110], reduced mucociliary clearance [110], airway inflammation and inflammation [111, 112], stent fracture and collapse [111], stent migration and fetal perforation [82, 112], and aortobronchial fistula [84, 89, 113] have made a clinical dilemma in the applications of airway stenting for benign CAO, which demands careful justification.

Tracheal necrosis may occur after metallic stenting to restore the airway patency compressed by high pressure of aortic aneurysm because of the pressure opposing the airway walls by the stent and aneurysm sac, which leads to the complications, aortobronchial fistula and massive hemoptysis [84]. Hence, airway stenting is recommended as a palliative therapy or bridge therapy before curative treatment for extrinsic vascular CAO [8, 114] among those who fail in endovascular repair [82, 83], those who require temporary symptom relief of residual airway stenosis after major surgery [89, 115], or those with major risks during the corrective surgery [33, 75, 83]. In case airway stenting is not suitable for the patient, a small caliber endobronchial tube using bronchoscope may be an alternative device to bypass the airway stenosis [78, 116] because severe hypercapnia may occur during intubation above the stenotic area with endotracheal tube in its usual size [26, 117].

5.2.3 Anesthesia before artificial airway establishment

Extrinsic CAO caused by huge aneurysm may present as a mediastinal mass [26, 72, 83, 116]. Patients with tracheal compression by a mediastinal mass or aneurysm can pose special problems for the anesthesiologist [118, 119]. Tracheal compression is associated with the incidence perioperative cardiorespiratory collapse [72]. Those with perioperative tracheal compression greater than 50% diminution of tracheal cross-sectional area are at risk of respiratory complications during anesthesia [120]. Without sufficient preparation, some patients with aortic aneurysm get sudden difficult mask ventilation, CO2 retention, oxygen desaturation, and bradycardia resulting from acute progression of tracheal stenosis when they loss spontaneous breathing during general anesthesia [72, 78]. Therefore, careful preoperative assessment and preparation in anesthesia before artificial airway establishment is essential in extrinsic vascular CAO.

Spontaneous breathing should be maintained before establishing an artificial airway beyond the trachea compression in extrinsic vascular CAO [78]. Patients who stop the spontaneous breathing after the induction of general anesthesia lose negative intrathoracic pressure during inspiration, moving the extraluminal airway pressure toward to exceed the intraluminal airway pressure and predisposing the airway collapse [72]. Therefore, awake fiberoptic intubation with local anesthesia is preferred for artificial airway establishment, and muscle relaxants should be avoided to prevent ventilatory failure during general anesthesia [116].

Blood pressure management is paramount for extrinsic vascular CAO. Not only does hypertension pressure increase the risk of rupture of vascular abnormalities, but also hypertension elevates the pressure of vascular compression of the airway that increases the risk of airway occlusion [116], increases the ventilation pressures, as well as decreases the tidal volume and minute ventilation [81]. Induced hypotension is a therapeutic strategy in this situation [116].

Alternative therapy should be prepared in case that endotracheal intubation fails to maintain airway patency or respiratory demand in extrinsic vascular CAO. Therefore, mechanical ventilation or percutaneous cardiopulmonary support should be ready before induction anesthesia [26, 78]. Mechanical ventilators, including non-invasive ventilation, support positive intraluminal airway pressure and prevent airway collapse while assisting ventilation and gas exchange [59, 77, 121]. Percutaneous cardiopulmonary support is the resolution for patients who present with persistent tracheal stenosis in CT images under ventilator [118], who experience refractory respiratory hypercapnic or hypoxemic distress during anesthesia [26, 72], and who fail to have their airway patency resorted by an endotracheal tube [116] or airway stenting [82].

5.2.4 Diagnosis of extrinsic TBM

Chronic compression of the central airway by great vessels restricts cartilage growth and softens the cartilage rings, leading to airway malacia in extrinsic vascular CAO [122]. The affected airway in TBM predisposes to collapse during expiration when the negative intrathoracic pressure for inspiration is reduced, which increases positive pressure gradient between extraluminal and intraluminal airway pressures. The phenomenon is known as dynamic airway limitation [12].

Airway malacia in TBM complicates the management of extrinsic vascular CAO. TBM coexistence with extrinsic vascular CAO prolongs the duration of artificial ventilation, intensive care, and hospital stay, and also increases considerable morbidity, mortality, and the requirement of reintubation and reoperation [57, 76, 77, 79, 106]. To treat airway malacia in vascular CAO simultaneously, high index of suspicion of central airway malacia before and after surgical reconstruction is vital in vascular CAO.

The use of awake DFB is practical to identify TBM [123]. A thinner bronchoscope may be required in case of severe airway stenosis [57]. To exclude the coexistence of extrinsic TBM with extrinsic vascular CAO during DFB, a subsequent investigation (asking the patient to perform the following commands: take a deep breathing, perform a forced exhalation, or make a cough) is the maneuver to elicit the collapsibility of the airways [106, 123]. The dynamic inhalation and exhalation maneuver has been the gold standard to confirm the diagnosis of TBM.

DFB affects decision-makings in the process of surgical reconstruction for extrinsic vascular CAO. Before surgery, DFB confirms the area and extent of tracheal compression and/or TBM where needs airway management [116]. After surgery, a repeat DFB is required to check residual tracheal narrowing and/or TBM before closing the surgical wound [76, 79]. An endobronchial tube or airway stenting is suitable as the bridge therapy for residual stenosis and/or TBM that causes respiratory discomfort after major surgery [115], for which subsequent proper management is required to cure the diseases [106].

A delay in management of the airway malacia complicates the clinical course of extrinsic vascular CAO [79, 124]. Failure in recognition of residual TBM leads to resistance during the advancement of a suction tube, unexpected desaturation, difficulty weaning from mechanical ventilation, and unexpected extubation failure soon after surgery [79]. Therefore, doctors should interpret the bronchocsopic findings carefully, especially intraoperative DFB images because the positive pressure supported by artificial ventilation may prevent dynamic airway collapse and mask the diagnosis of TBM caused by extrinsic vascular CAO [79].

6. Conclusions

Doctors should increase suspicion of extrinsic vascular CAO in patients who have difficulty in mask ventilation or intubation but presenting with normal anatomy on the glottis and upper respiratory tract. Among patients, anesthesiologists, radiologists, vascular surgeons, thoracic physicians, cardiothoracic surgeons, otolaryngologists, preoperative interdisciplinary discussions focusing on the risk of respiratory distress in patients who are expected difficult intubation or difficult ventilation and who are at risk of hemodynamic instability during induction and maintenance of anesthesia are recommended [83, 125].

Author contributions

SYL and HCK designed the study. SYL, CLC, STH, and HKL searched, reviewed, and analyzed the articles. SYL and CLC drafted the manuscript. SYL and HCK completed and proofread the article.

Ethics approval and consent to participate

Not applicable.

Acknowledgment

The authors acknowledge the institutional support from Ministry of Science and Technology, National Taipei University of Technology, and Mackay Memorial Hospital. We also would like to express our gratitude to all those who helped us during the writing of this manuscript, and all the peer reviewers for their opinions and suggestions.

Funding

This research was funded by Ministry of Science and Technology, Taiwan, grant number MOST 109-2320-B-030-006-MY3, and also funded by National Taipei University of Technology and Mackay Memorial Hospital Joint Research Program, grant number NTUT-MMH-109-01 and MMH-TT-10907.

Conflict of interest

The authors declare no conflict of interest. Shih-Yi Lee is the member of the Editor Board of the journal.

References

Oberg C, Holden V, Channick C. Benign central airway obstruction. Seminars in Respiratory and Critical Care Medicine. 2018; 39: 731–746.

[Google Scholar]

Yoshida T, Konno S, Takahashi A, Nasuhara Y, Betsuyaku T, Nishimura M. Flow-volume curve as an aid to diagnosis in double aortic arch masquerading as asthma in a young adult. Nihon Kokyuki Gakkai Zasshi. 2010; 48: 229–234.

[Google Scholar]

Sidney SB, Henning AG. Upper airway obstruction. In Alfred PF, Jack AE, Jay AF, Michael AG, Larry RK, Robert MS (eds.) Fishman’s pulmonary diseases and disorders (pp. 783–801). 3rd edn. New York: McGraw-Hill. 1998.

[Google Scholar]

Cook TM, MacDougall-Davis SR. Complications and failure of airway management. British Journal of Anaesthesia. 2012; 109: i68–i85.

[Google Scholar]

Hegewald M, Linares-Perdomo O, Collingridge D, Jensen R, Hankinson J, Morris A. Mortality and classification of airway obstruction severity by different methods. European Respiratory Journal. 2016; 48: PA1328.

[Google Scholar]

Murgu SD, Egressy K, Laxmanan B, Doblare G, Ortiz-Comino R, Hogarth DK. Central airway obstruction: benign strictures, tracheobronchomalacia, and malignancy-related obstruction. Chest. 2016; 150: 426–441.

[Google Scholar]

McPherson K, Stephens RC. Managing airway obstruction. British Journal of Hospital Medicine. 2012; 73: C156–C160.

[Google Scholar]

Holden VK, Channick CL. Management of benign central airway obstruction. AME Medical Journal. 2018; 3: 76.

[Google Scholar]

Hung S, Lai JC, Chang W, Ku H. Effects of age on emergency airway management. Signa Vitae. 2021; 17: 127–131.

[Google Scholar]

Liao E, Chang W, Yu C, Chau Y, Sun F, Lai W, et al. Predictors of difficult endotracheal intubation in the emergency department: a single-center pilot study. Signa Vitae. 2021; 17: 77–84.

[Google Scholar]

Lim H, Wang H, Hung S, Ku H. A dangerous cause of airway obstruction: deep neck infection. Signa Vitae. 2021; 17: 4–9.

[Google Scholar]

Barros Casas D, Fernández-Bussy S, Folch E, Flandes Aldeyturriaga J, Majid A. Non-malignant central airway obstruction. Archivos De Bronconeumología. 2014; 50: 345–354.

[Google Scholar]

Ernst A, Feller-Kopman D, Becker HD, Mehta AC. Central airway obstruction. American Journal of Respiratory and Critical Care Medicine. 2004; 169: 1278–1297.

[Google Scholar]

Kussman BD, Geva T, McGowan FX. Cardiovascular causes of airway compression. Pediatric Anesthesia. 2004; 14: 60–74.

[Google Scholar]

Yilmaz M, Ozkan M, Dogan R, Demircin M, Ersoy U, Boke E, et al. Vascular anomalies causing tracheoesophageal compression: a 20-year experience in diagnosis and management. Heart Surgery Forum. 2003; 6: 149–152.

[Google Scholar]

Ruzmetov M, Vijay P, Rodefeld MD, Turrentine MW, Brown JW. Follow-up of surgical correction of aortic arch anomalies causing tracheoesophageal compression: a 38-year single institution experience. Journal of Pediatric Surgery. 2009; 44: 1328–1332.

[Google Scholar]

Singhal M, Gupta P, Singh RS, Rohit MK, Sodhi KS, Khandelwal N. Cardiovascular causes of pediatric airway compression: a pictorial review. Current Problems in Diagnostic Radiology. 2015; 44: 505–510.

[Google Scholar]

Kanabuchi K, Noguchi N, Kondo T. Vascular tracheobronchial compression syndrome in adults: a review. Tokai Journal of Experimental and Clinical Medicine. 2011; 36: 106–111.

[Google Scholar]

Tominaga R, Tanaka J, Kawachi Y, Yoshitoshi M, Kohno H, Shiki K, et al. Surgical treatment of respiratory insufficiency due to tracheobronchial compression by aneurysms of the ascending aorta and innominate artery. Journal of Cardiovascular Surgery. 1988; 29: 413–417.

[Google Scholar]

Constenla I, Alvarez B, Yugueros X, Fernandez E, Bofill R, Matas M. Innominate artery aneurysm with hemoptysis and airway compression in a patient with bovine aortic arch. Journal of Vascular Surgery. 2012; 56: 822–825.

[Google Scholar]

Yamashiro S, Nagano T, Kuniyoshi Y, Kise Y, Maeda T, Arakaki R. Endovascular repair of intrathoracic ruptured kommerell’s diverticulum. Asian Cardiovascular and Thoracic Annals. 2012; 20: 587–590.

[Google Scholar]

Chen C, Chang C, Huang H. kommerell diverticulum compressing the tracheobronchial tree and presenting as wheezing. American Journal of Respiratory and Critical Care Medicine. 2014; 190: e32–e33.

[Google Scholar]

Dinh K, Manuel L, Somers M, Vicaretti M. Vascular tracheobronchial compression syndrome secondary to contained ruptured thoracic aortic aneurysm. Journal of Surgical Case Reports. 2021; 2021: rjab147.

[Google Scholar]

van Son JAM, Julsrud PR, Hagler DJ, Sim EKW, Pairolero PC, Puga FJ, et al. Surgical treatment of vascular rings: the mayo clinic experience. Mayo Clinic Proceedings. 1993; 68: 1056–1063.

[Google Scholar]

Sebening C, Jakob H, Tochtermann U, Lange R, Vahl CF, Bodegom P, et al. Vascular tracheobronchial compression syndromes- experience in surgical treatment and literature review. Journal of Thoracic and Cardiovascular Surgery. 2000; 48: 164–174.

[Google Scholar]

Jung HJ, Kim JB, Im KS, Kim DJ, Lee JM. Management of tracheal compression that’s caused by an innominate artery aneurysm—a case report. Korean Journal of Anesthesiology. 2009; 57: 762.

[Google Scholar]

Kumar A, Raju S, Das A, Mehta AC. Vessels of the central airways. Chest. 2016; 149: 869–881.

[Google Scholar]

Anastasius EJ, Sawali H. Stridor in a newborn with double aortic arch- a case report. Iranian Journal of Otorhinolaryngology. 2019; 31: 61–63.

[Google Scholar]

ŠKarić I, Jakobović J, Ilić MK, KondžA K, Babić I. Variation of vascular ring as a cause of extubation failure. Signa Vitae. 2008; 3: 29–31.

[Google Scholar]

Mclaughlin RB, Wetmore RF, Tavill MA, Gaynor JW, Spray TL. Vascular anomalies causing symptomatic tracheobronchial compression. laryngoscope. 1999; 109: 312–319.

[Google Scholar]

Zheng GM, Wu XH, Tang LF. Respiratory symptoms due to vascular ring in children. Hong Kong Journal of Paediatrics. 2016; 21: 14–21.

[Google Scholar]

Lanjewar C, Shiradkar S, Agrawal A, Mishra N, Kerkar P. Aneurysmally dilated major aorto-pulmonary collateral in tetralogy of Fallot. Indian Heart Journal. 2012; 64: 196–197.

[Google Scholar]

Miyamoto Y, Ohashi A, Ishi H, Tazaki G, Kondo T. A case of severe bronchial stenosis caused by a vascular ring in an elderly woman. Nihon Kokyuki Gakkai Zasshi. 2008; 46: 243–247.

[Google Scholar]

Ochi N, Yasugi M, Takigawa N. Asymptomatic double aortic arch with compressed oesophagus in an adult. Case Reports. 2012; 2012: bcr1220115315.

[Google Scholar]

Smith BM, Lu JC, Dorfman AL, Ghadimi Mahani M, Agarwal PP. Rings and slings revisited. Magnetic Resonance Imaging Clinics of North America. 2015; 23: 127–135.

[Google Scholar]

van Son JAM, Julsrud PR, Hagler DJ, Sim EKW, Puga FJ, Schaff HV, et al. Imaging strategies for vascular rings. the Annals of Thoracic Surgery. 1994; 57: 604–610.

[Google Scholar]

Polguj M, Chrzanowski L, Kasprzak JD, Stefańczyk L, Topol M, Majos A. The aberrant right subclavian artery (arteria lusoria): the morphological and clinical aspects of one of the most important variations—a systematic study of 141 reports. Scientific World Journal. 2014; 2014: 292734.

[Google Scholar]

Mossad E, Farid I, Youssef G, Ando M. Diverticulum of kommerell: a review of a series and a report of a case with tracheal deviation compromising single lung ventilation. Anesthesia & Analgesia. 2002; 94: 1462–1464.

[Google Scholar]

Prieto Lastra L, Pérez Pimiento A, González Sánchez LA, Rodríguez Mosquera M, García Cubero A. Be sure you are treating asthma. Allergologia et Immunopathologia. 2006; 34: 127–128.

[Google Scholar]

Choi J, Min KH, Lee SY, Kang KH, Shim JJ. Rare adult presentation of fixed airways obstruction: remember aortic arch abnormalities. Thorax. 2018; 73: 298–299.

[Google Scholar]

Swami N, Koshy G, Jamal M, Abdulla TS, Alkhulaifi A. Typical asthmatic presentation of congenital vascular ring can masquerade a general physician. Case Reports in Vascular Medicine. 2013; 2013: 1–4.

[Google Scholar]

van Rosendael PJ, Stoger JL, Kies P, Vliegen HW, Hazekamp MG, Koolbergen DR, et al. The clinical spectrum of kommerell’s diverticulum in adults with a right-sided aortic arch: A case series and literature overview. Journal of Cardiovascular Development and Disease. 2021; 8: 25.

[Google Scholar]

Jung JY, Almond CH, Saab SB, Lababidi Z. Surgical repair of right aortic arch with aberrant left subclavian artery and left ligamentum arteriosum. Journal of Thoracic and Cardiovascular Surgery. 1978; 75: 237–243.

[Google Scholar]

Bell KT, McKinney MR, Salazar PA, Esper E. Hybrid repair of an adult with a double aortic arch, coarctation of the aorta, and left subclavian artery aneurysm. Journal of Vascular Surgery Cases and Innovative Techniques. 2019; 5: 535–537.

[Google Scholar]

Sumerkan MC, Helvaci F, Basak M. Double aortic arch associated with tracheal and esophageal compression in an adult. Anatolian Journal of Cardiology. 2014; 14: E14–E15.

[Google Scholar]

Generali T. Double aortic arch determining tracheal stenosis in an adult: erratum. Asian Cardiovascular and Thoracic Annals. 2014; 22: 884–884.

[Google Scholar]

Seo HS, Park YH, Lee JH, Hur SC, Ko YJ, Park SY, et al. A case of balanced type double aortic arch diagnosed incidentally by transthoracic echocardiography in an asymptomatic adult patient. Journal of Cardiovascular Ultrasound. 2011; 19: 163–166.

[Google Scholar]

Kypson AP, Anderson CA, Rodriguez E, Koutlas TC. Double aortic arch in an adult undergoing coronary bypass surgery: a therapeutic dilemma? European Journal of Cardio-Thoracic Surgery. 2008; 34: 920–921.

[Google Scholar]

Geva T, Ray RA, Santini F, Van Praagh S, Van Praagh R. Asymptomatic persistent fifth aortic arch (congenital double-lumen aortic arch) in an adult. American Journal of Cardiology. 1990; 65: 1406–1407.

[Google Scholar]

Kron IL, Mappin G, Nolan SP, Kellum C, Tegtmeyer CJ. Symptomatic double aortic arch causing tracheal and esophageal compression in the adult. Annals of Thoracic Surgery. 1987; 43: 105–106.

[Google Scholar]

Calabrese C, Corcione N, Di Spirito V, Guarino C, Rossi G, Domenico Gargiulo G, et al. Recurrent respiratory infections caused by a double aortic arch: the diagnostic role of spirometry. Respiratory Medicine Case Reports. 2013; 8: 47–50.

[Google Scholar]

Piloni D, Tirelli C, Domenica RD, Conio V, Grosso A, Ronzoni V, et al. Asthma-like symptoms: is it always a pulmonary issue? Multidisciplinary Respiratory Medicine. 2018; 13: 21.

[Google Scholar]

Fenández-Tena A, Martínez-González C. Double aortic arch diagnosed in a 44-year-old woman with recurring respiratory infections. Respiratory Medicine Case Reports. 2017; 20: 176–178.

[Google Scholar]

Barbara DW, Broski SM, Patch RK, Pochettino A. Double aortic arch causing severe tracheal compression. Anesthesiology. 2017; 126: 326.

[Google Scholar]

Olearchyk AS. Right-Sided double aortic arch in an adult. Journal of Cardiac Surgery. 2004; 19: 248–251.

[Google Scholar]

LaBelle MF, Rainer WG, Ratzer E, Miller KB. Surgical repair of pulmonary artery sling in an adult. Annals of Thoracic Surgery. 2010; 90: 1009–1011.

[Google Scholar]

Imoto S, Satomi R, Watase M, So M, Murakami H, Hosoo S, et al. An adult case of pulmonary artery sling accompanied by tracheobronchomalacia. Internal Medicine. 2019; 58: 1621–1624.

[Google Scholar]

Inui T, Yamada H, Hida N, Terashima H, Saito T, Hizawa N. A case of a pulmonary artery sling misdiagnosed as refractory asthma for 20 years. Clinical Case Reports. 2017; 5: 863–866.

[Google Scholar]

Karthekeyan BR, Sundar S, Rao S, Vakamudi M. Management of a patient with kommerrell’s aneurysm causing tracheal and esophageal compression. Indian Journal of Anaesthesia. 2009; 53: 358–361.

[Google Scholar]

Tsukui H, Aomi S, Yamazaki K. Surgical strategy for kommerell’s diverticulum: total arch replacement. Journal of Thoracic and Cardiovascular Surgery. 2014; 148: 1423–1427.

[Google Scholar]

Hindori VG, Schepens MA. Tracheal compression due to a kommerell diverticulum in a patient with a right-sided aorta. Nederlands Tijdschrift voor Geneeskunde. 2006; 150: 554–558.

[Google Scholar]

Takahashi Y, Tsutsumi Y, Monta O, Ohashi H. Severe tracheal compression due to cervical aortic arch aneurysm. Journal of Cardiac Surgery. 2011; 26: 400–402.

[Google Scholar]

Bagozzi L, Bottio T, Rubino M, Gerosa G. Frozen elephant trunk to exclude the kommerell diverticulum associated with double aortic arch in adult redo patient. Annals of Vascular Surgery. 2021; 73: 529–531.

[Google Scholar]

Altinsoy B, Altintas N, Unver E. Photoclinic. Central airway obstruction due to right aortic arch anomaly. Archives of Iranian Medicine. 2013; 16: 197–198.

[Google Scholar]

Gupta K, Tyagi D, Prajapat D, Kumar V. Tracheal compression due to anomalous innominate artery in an adult. Lung India. 2014; 31: 419–420.

[Google Scholar]

Tramper J, Noordegraaf AV, Meijboom LJ, Zwitserloot AM, Straver B, Aman J. A rare hemodynamic cause of airway obstruction. American Journal of Respiratory and Critical Care Medicine. 2018; 197: e20–e21.

[Google Scholar]

Tadavarthy SM, Castaneda-Zuniga WR, Klugman J, Ben Shachar J, Amplatz K. Syphilitic aneurysms of the innominate artery. Radiology. 1981; 139: 31–34.

[Google Scholar]

Brewster DC, Moncure AC, Darling RC, Ambrosino JJ, Abbott WM. Innominate artery lesions: problems encountered and lessons learned. Journal of Vascular Surgery. 1985; 2: 99–112.

[Google Scholar]

Schumacher PD, Wright CB. Management of of arteriosclerotic aneurysm of the innominate artery. Surgery. 1979; 85: 489–495.

[Google Scholar]

Sayed A, Farok A, El-Sayed H, Soliman SA. Pulsating suprasternal lump: a diagnostic and management dilemma. Methodist DeBakey Cardiovascular Journal. 2013; 9: 233–234.

[Google Scholar]

Soylu E, Harling L, Ashrafian H, Anagnostakou V, Tassopoulos D, Charitos C, et al. Surgical treatment of innominate artery and aortic aneurysm: a case report and review of the literature. Journal of Cardiothoracic Surgery. 2013; 8: 141.

[Google Scholar]

Inoue O, Murai H, Kaneko S, Usui S, Furusho H, Takamura M. Hemodynamic collapse induced by general anesthesia in a patient with an unruptured thoracic aortic aneurysm: a case report. BMC Cardiovascular Disorders. 2013; 13: 122.

[Google Scholar]

Kumeda H, Tomita Y, Morita S, Yasui H. Compression of trachea and left main bronchus by arch aneurysm. Annals of Thoracic Surgery. 2005; 79: 1038–1040.

[Google Scholar]

Lefrak EA, Stevens PM, Howell JF. Respiratory insufficiency due to tracheal compression by an aneurysm of the ascending, transverse, and descending thoracic aorta. Journal of Thoracic and Cardiovascular Surgery. 1972; 63: 956–961.

[Google Scholar]

Chen W, Tu C, Liang S, Liu J, Chen W. Metallic stents for rescuing a patient with severe upper airway compression due to aortic aneurysm. American Journal of Emergency Medicine. 2009; 27: 256.e1–256.e4.

[Google Scholar]

Kumar A, Dutta V, Negi S, Puri G. Vascular airway compression management in a case of aortic arch and descending thoracic aortic aneurysm. Annals of Cardiac Anaesthesia. 2016; 19: 568–571.

[Google Scholar]

Dutau H, Cavailles A, Fernandez-Navamuel I, Breen DP. Tracheal compression in a patient with marfan’s syndrome-associated tracheomegaly treated by an xxl stent: the largest diameter airway stent ever placed in a previously undescribed airway condition. Respiration. 2009; 77: 97–101.

[Google Scholar]

Takara I, Uehara M, Higa Y, Takechi A, Iha H, Sugahara K. Respiratory management in a patient with severe tracheal stenosis caused by compression from the ascending aortic arch aneurysm. Masui. 2003; 52: 1079–1082.

[Google Scholar]

de Feiter PW, van Mook WNKA, Jacobs MJHM. Tracheal compression caused by an innominate artery aneurysm after thoracic aortic aneurysm repair in a patient with Marfan disease. Journal of Thoracic and Cardiovascular Surgery. 2005; 129: 943–944.

[Google Scholar]

Odofin X, Houbby N, Hagana A, Nasser I, Ahmed A, Harky A. Thoracic aortic aneurysms in patients with heritable connective tissue disease. Journal of Cardiac Surgery. 2021; 36: 1083–1090.

[Google Scholar]

Heuts S, Sprooten RTM, Heines SJH, Mees BME. Mechanical ventilation variability due to tracheal compression in a patient with a mycotic descending aortic aneurysm: an inverse correlation with blood pressure. European Journal of Cardiothoracic Surgery. 2020; 58: 864–866.

[Google Scholar]

Jung H, Do YW, Lee SY, Lee Y, Oh TH, Kim GJ. Thoracic aortic aneurysms exerting high extrinsic pressure on the airway. Journal of Cardiothoracic Surgery. 2019; 14: 169.

[Google Scholar]

Comer D, Bedi A, Kennedy P, McManus K, McIlwaine W. Successful endobronchial stenting for bronchial compression from a massive thoracic aortic aneurysm. Journal of Surgical Case Reports. 2010; 2010: 2.

[Google Scholar]

Abdulghani A, Pisipati S, Mcwilliams R, Page R. Aorto-bronchial fistula following aortic and bronchial stenting of a thoracic aneurysm. European Journal of Cardiothoracic Surgery. 2006; 29: 419–421.

[Google Scholar]

Masumoto H, Shimamoto M, Yamazaki F, Nakai M, Fujita S, Miura Y. Airway stenosis associated with a mycotic pseudoaneurysm of the common carotid artery. General Thoracic and Cardiovascular Surgery. 2008; 56: 242–245.

[Google Scholar]

Lee S, Wu K, Chen P, Sheu C, Kuo C, Wang T, et al. Intrathoracic tracheal obstruction caused by a carotid mycotic aneurysm in a patient with deep neck infection—a case report. Respiration. 2007; 74: 220–223.

[Google Scholar]

Lacey L, Dabbas N, Saker R, Blakeley C. Dissection of the carotid artery as a cause of fatal airway obstruction. Emergency Medicine Journal. 2007; 24: 367–368.

[Google Scholar]

Waikittipong S. Syphilitic aortic aneurysm presenting with upper airway obstruction. Asian Cardiovascular and Thoracic Annals. 2012; 20: 575–577.

[Google Scholar]

Katayama Y, Suzuki H, Mizutani T. Aorto-bronchial fistula after implantation of a self-expanding bronchial stent in a patient with aortic dissection. Japanese Journal of Thoracic and Cardiovascular Surgery. 2000; 48: 73–75.

[Google Scholar]

Nagato H, Nishiwaki N, Kaneda K, Tamura N. Surgical repair of a giant pulmonary artery aneurysm that caused severe left bronchial obstruction. Interactive Cardiovascular and Thoracic Surgery. 2020; 31: 266–267.

[Google Scholar]

Park HS, Chamarthy MR, Lamus D, Saboo SS, Sutphin PD, Kalva SP. Pulmonary artery aneurysms: diagnosis & endovascular therapy. Cardiovascular Diagnosis and Therapy. 2018; 8: 350–361.

[Google Scholar]

Jaijee SK, Ariff B, Howard L, O’Regan DP, Gin-Sing W, Davies R, et al. Left main bronchus compression due to main pulmonary artery dilatation in pulmonary hypertension: two case reports. Pulmonary Circulation. 2015; 5: 723–725.

[Google Scholar]

Morjaria S, Grinnan D, Voelkel N. Massive dilatation of the pulmonary artery in association with pulmonic stenosis and pulmonary hypertension. Pulmonary Circulation. 2012; 2: 256–257.

[Google Scholar]

Achouh L, Montani D, Garcia G, Jais X, Hamid AM, Mercier O, et al. Pulmonary arterial hypertension masquerading as severe refractory asthma. European Respiratory Journal. 2008; 32: 513–516.

[Google Scholar]

Yokota T, Asai T, Okuda Y. Use of the I-gel for tracheostomy in a patient with neck deformity and tracheal stenosis. Masui. 2015; 64: 307–309.

[Google Scholar]

Kolilekas L, Manali E, Kalomenidis I, Mouchtouri E, Spyrou K, Papiris S. Tracheal compression in marfan syndrome. Internal Medicine. 2008; 47: 1069–1070.

[Google Scholar]

Nagahiro I, Toda D, Andou A, Shimizu N. A case of bronchial varices due to extrahepatic portal hypertension. Respiration. 2007; 74: 460–461.

[Google Scholar]

Desai AD, Bandi V, Holzhauser L, Loebe M, Noon G, Lunn W. Bleeding after biopsy of a bronchial artery arteriovenous malformation presenting as an endobronchial mass. Journal of Bronchology. 2008; 15: 176–178.

[Google Scholar]

Soda H, Oka M, Kohno S, Watanabe M, Takatani H, Hara K. Arteriovenous malformation of the bronchial artery showing endobronchial protrusion. Internal Medicine. 1995; 34: 797–800.

[Google Scholar]

Arango Tomás E, Cerezo Madueño F, Salvatierra Velázquez A. Bronchiectasis due to pulmonary artery aneurysm. Interactive CardioVascular and Thoracic Surgery. 2013; 17: 176–178.

[Google Scholar]

Padrones SS, Lisbona RL, Gratacos AR, Rodriguez AN, Diaz-Jimenez JP. Pulmonary artery pseudoaneurysm arising from a lung tumor. Journal of Bronchology & Interventional Pulmonology. 2009; 16: 274–276.

[Google Scholar]

Dransfield MT, Johnson JE. A mycotic pulmonary artery aneurysm presenting as an endobronchial mass. Chest. 2003; 124: 1610–1612.

[Google Scholar]

Shweihat YR, Zoby MAL. Pulmonary varices in an adult. Journal of Bronchology & Interventional Pulmonology. 2015; 22: 326–328.

[Google Scholar]

Walker CM, Rosado-de-Christenson ML, Martínez-Jiménez S, Kunin JR, Wible BC. Bronchial arteries: anatomy, function, hypertrophy, and anomalies. RadioGraphics. 2015; 35: 32–49.

[Google Scholar]

Kobayashi H, Kanoh S, Motoyoshi K, Ozeki Y, Aida S. Bulging endobronchial varices associated with bronchial artery aneurysm. Journal of Bronchology. 2008; 15: 52–53.

[Google Scholar]

Carden KA, Boiselle PM, Waltz DA, Ernst A. Tracheomalacia and tracheobronchomalacia in children and adults. Chest. 2005; 127: 984–1005.

[Google Scholar]

Reddel HK, Taylor DR, Bateman ED, Boulet L, Boushey HA, Busse WW, et al. An official american thoracic society/european respiratory society statement: asthma control and exacerbations. American Journal of Respiratory and Critical Care Medicine. 2009; 180: 59–99.

[Google Scholar]

Gibbs PM, Hami A. Pulmonary arterial aneurysm presenting as an endobronchial mass. Thorax. 1995; 50: 1013–1017.

[Google Scholar]

Sharma S, Hashmi MF, Burns B. Alveolar gas equation. Treasure Island: Statpearls. 2021.

[Google Scholar]

Grosu HB, Eapen GA, Morice RC, Jimenez CA, Casal RF, Almeida FA, et al. Stents are associated with increased risk of respiratory infections in patients undergoing airway interventions for malignant airways disease. Chest. 2013; 144: 441–449.

[Google Scholar]

Ost DE, Shah AM, Lei X, Godoy MCB, Jimenez CA, Eapen GA, et al. Respiratory infections increase the risk of granulation tissue formation following airway stenting in patients with malignant airway obstruction. Chest. 2012; 141: 1473–1481.

[Google Scholar]

Wadsworth SJ, Juniper MC, Benson MK, Gleeson FV. Fatal complication of an expandable metallic bronchial stent. British Journal of Radiology. 1999; 72: 706–708.

[Google Scholar]

Nouraei SM, Pillay T, Hilton CJ. Emergency management of aorto-bronchial fistula after implantation of a self-expanding bronchial stent. European Journal of Cardiothoracic Surgery. 2001; 20: 642–644.

[Google Scholar]

Madden BP, Loke T, Sheth AC. Do expandable metallic airway stents have a role in the management of patients with benign tracheobronchial disease? Annals of Thoracic Surgery. 2006; 82: 274–278.

[Google Scholar]

Watanabe S, Toyohira H, Yamaoka A, Yotsumoto G, Shiota K, Taira A. Usefulness of dumon-type endotracheal stent for left main bronchial obstruction caused by thoracic aortic aneurysm—a case report. Nihon Kyobu Geka Gakkai Zasshi. 1996; 44: 1776–1780.

[Google Scholar]

Kawano H, Manabe S, Takata K, Soga T, Tomiyama Y, Oshita S. Anesthesia for a patient with severe tracheal stenosis due to thoracic aortic aneurysm. Masui. 2011; 60: 1195–1198.

[Google Scholar]

Awasthy N, Arora HS, Radhakrishnan S. Endotracheal tube as tracheal stent in vascular ring. Asian Cardiovascular and Thoracic Annals. 2016; 24: 195–197.

[Google Scholar]

Saito K, Sunouchi A, Toyama H, Yamauchi M. Preoperative assessment of airway patency during general anesthesia in a patient with severe tracheal stenosis: effectiveness of noninvasive positive pressure ventilation. Journal of Cardiothoracic and Vascular Anesthesia. 2020; 34: 566–567.

[Google Scholar]

Yeap TB, Teah MK, Ramly AKM, Bong CP. Anaesthetic challenges for a patient with huge superior mediastinal mass in prone position. BMJ Case Reports. 2021; 14: e242118.

[Google Scholar]

Béchard P, Létourneau L, Lacasse Y, Côté D, Bussières J. Perioperative cardiorespiratory complications in adults with mediastinal mass. Anesthesiology. 2004; 100: 826–834.

[Google Scholar]

Bauchmuller K, Glossop A. Non-invasive ventilation in the perioperative period. BJA Education. 2016; 16: 299–304.

[Google Scholar]

Jokinen K, Palva T, Sutinen S, Nuutinen J. Acquired tracheobronchomalacia. Annals of Clinical Research. 1977; 9: 52–57.

[Google Scholar]

Majid A, Gaurav K, Sanchez JM, Berger RL, Folch E, Fernandez-Bussy S, et al. Evaluation of tracheobronchomalacia by dynamic flexible bronchoscopy. A pilot study. Annals of the American Thoracic Society. 2014; 11: 951–955.

[Google Scholar]

Matsushita T, Nakamura A, Kawachi H, Hashimoto T, Nakaji S. A case report of surgical treatment for aneurysm of the brachiocephalic artery associated with tracheal stenosis. Nihon Kyobu Geka Gakkai Zasshi. 1997; 45: 754–758.

[Google Scholar]

Totaro P, Marconi S, Morganti S, Corsico AG, Pelenghi S, Auricchio F. Multidisciplinary preoperative simulations to optimize surgical outcomes in a challenging case of the complete double aortic arch in the adult. Journal of Cardiac Surgery. 2020; 35: 716–720.

[Google Scholar]
